Introduction
The A045 PEM Electrolyzer produces hydrogen and oxygen through a highly efficient electrolysis process. With a compact design and stable performance, it provides reliable hydrogen output (45±2ml/Min) and oxygen output (22±2ml/Min) using pure water.
Share:
Product Description

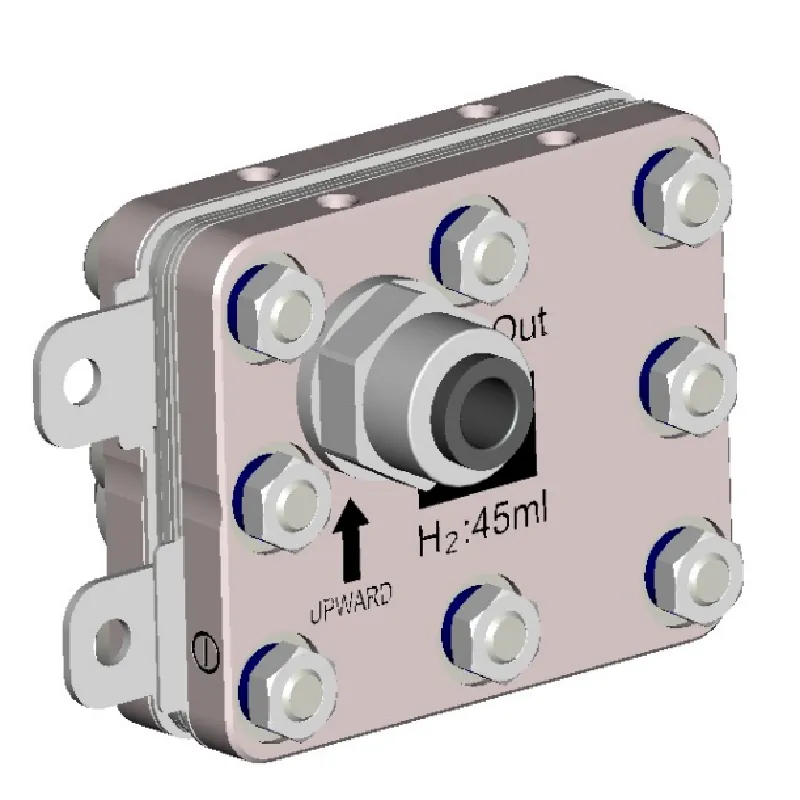

The A045 PEM Electrolyzer is a high-performance electrolyzer for hydrogen and oxygen production with a compact design, suitable for various applications in the energy sector. This electrolyzer utilizes a proton exchange membrane (PEM) to produce pure hydrogen and oxygen efficiently.
Product Parameters
| Nominal Specification | 45ml |
| Gas production | H2: 45±2ml/Min; O2: 22±2ml/Min |
| Working medium | Pure water |
| Overall size | 73X56X50mm |
| Sizes of mounting holes | 2*M4 |
| Sizes of Inlet/outlet holes | φ1/4” Quick connector |
| Type of Power Supply | Constant Current power |
| Rated voltage/current | DC3.5V / 6A |
| Acceptable operating voltage/current range | ≤36V / ≤6.5A |
| Working water | Pure water with TDS less than 5ppm, water temperature above 0°C & below 45°C |
| Water supply method | Circulate water supply between that tank and inlet of electrolyzer, water level about 15cm, pressure <0.5MPa |
| Normal working voltage/current | 1.7-2.35V / 6A |
| Surface temperature | < 60°C |
| Theoretical water consumption | About 0.05ml/Min |
| Water consumption (Without Hydrogen-water separation) | About 3-5ml/Min |
Product Advantages
Product Features
Efficient Hydrogen & Oxygen Production: 45±2ml/Min of hydrogen and 22±2ml/Min of oxygen output.
Low Water Consumption: Approximately 0.05ml/min of water consumption for hydrogen production.
Stable Operating Conditions: Can operate with water temperatures between 0°C and 45°C.
Compact Design: Suitable for various applications in limited spaces.
High-Quality Water Electrolysis: Produces hydrogen and oxygen using pure water (TDS <5ppm).
User-Friendly: Easy to install with quick connectors and reliable operation.
Need Custom Design and Development for CCM And PEM Electrolyzers?
We strongly support customer personalization and customization, providing the most suitable solutions based on different customer needs. If you have any customization requirements, please contact us and we will provide you with the most professional advice and products.
