Hydrogen-Enriched Water Dispensers Incorporating Small-Scale Domestic PEM Electrolysers

Abstract

The consumption of hydrogen-enriched water has attracted considerable interest as a potential means of delivering molecular hydrogen for its purported health-promoting properties. This article examines hydrogen-enriched water dispensers that incorporate small-scale proton exchange membrane (PEM) electrolysers to generate dissolved molecular hydrogen in potable water. The discussion encompasses the physicochemical principles governing hydrogen dissolution, the application of PEM electrolysis technology to water enrichment, system architecture, performance parameters, stability considerations, and the current state of evidence regarding biological effects. It is demonstrated that PEM-based hydrogen water dispensers can reliably produce beverages with dissolved hydrogen concentrations ranging from 0.8 to 1.6 milligrams per litre, though the therapeutic significance of such concentrations remains subject to ongoing scientific investigation.

1. Introduction

Molecular hydrogen (H₂) has been investigated as a bioactive molecule with antioxidant and anti-inflammatory properties since the publication of seminal research in 2007. Whilst inhalation represents the most direct delivery route, the oral consumption of hydrogen-enriched water offers an alternative modality that is readily integrated into daily routines. Hydrogen-enriched water dispensers employing small-scale PEM electrolysers have consequently emerged as consumer health devices, particularly in Asian markets.

Unlike alkaline ionisers, which employ non-selective electrolysis and simultaneously alter water pH, mineral content, and oxidation-reduction potential, PEM-based systems generate molecular hydrogen through a membrane-separated electrochemical process that minimally affects other water properties. This distinction is significant both from an engineering perspective and in terms of isolating hydrogen as the active agent in any observed biological effects.

2. Physicochemical Principles of Hydrogen Dissolution

The dissolution of molecular hydrogen in water is governed by Henry's Law, which states that the concentration of a dissolved gas in a liquid is directly proportional to the partial pressure of that gas above the liquid:

C = k_H × P

where C represents the dissolved hydrogen concentration, P denotes the partial pressure of hydrogen, and k_H is Henry's constant, which for hydrogen in water at 25 degrees Celsius equals approximately 7.8 × 10⁻⁴ mol L⁻¹ atm⁻¹, or equivalently 1.6 milligrams per litre per atmosphere.

At standard atmospheric pressure (101.325 kilopascals) and 25 degrees Celsius, the saturation concentration of hydrogen in water exposed to a pure hydrogen atmosphere is approximately 1.6 milligrams per litre (0.8 millimoles per litre). However, hydrogen exhibits exceptionally low molecular mass and small kinetic diameter, resulting in rapid diffusion through most materials and escape from open containers. The residence time of dissolved hydrogen in an unsealed vessel is typically measured in hours, presenting significant challenges for product stability.

3. PEM Electrolysis for Hydrogen Water Generation

3.1 Operating Principles. The PEM electrolyser employed in hydrogen water dispensers functions through the electrochemical splitting of water molecules at a solid polymer electrolyte membrane. At the anode, water oxidation occurs:

2H₂O → O₂ + 4H⁺ + 4e⁻

The membrane, typically composed of perfluorosulphonic acid with a thickness of 50 to 127 micrometres, conducts protons to the cathode whilst preventing gas crossover. At the cathode, proton reduction yields molecular hydrogen:

4H⁺ + 4e⁻ → 2H₂

3.2 Integration with Water Treatment. In hydrogen water dispensers, the cathode is positioned in direct contact with the drinking water reservoir or flow channel, enabling the generated hydrogen to dissolve immediately into the water matrix. This in situ generation method is thermodynamically and kinetically favourable compared with external hydrogen injection methods, as the nascent hydrogen produced at the cathode surface exhibits enhanced dissolution efficiency.

The oxygen generated at the anode is separately vented to atmosphere, preventing its accumulation in the drinking water and avoiding the formation of hydrogen peroxide through recombination reactions.

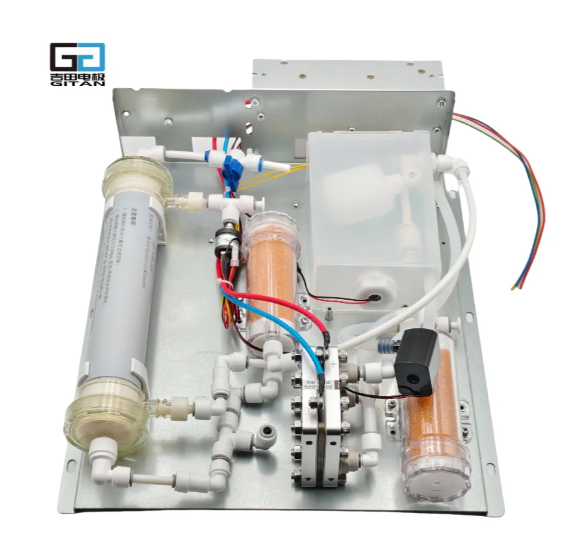

4. System Architecture and Design

4.1 Water Purification Stage. Source water first passes through a multi-stage filtration system comprising sediment filters, activated carbon blocks for chlorine and organic contaminant removal, and optionally, reverse osmosis membranes or ultrafiltration units. This pre-treatment serves dual purposes: ensuring microbiological and chemical safety of the drinking water, and protecting the PEM electrolyser from fouling and membrane degradation caused by ionic contaminants.

4.2 Electrolysis Chamber. The PEM electrolyser assembly consists of a membrane electrode assembly housed within a corrosion-resistant chamber, typically fabricated from food-grade stainless steel (type 316L) or inert polymers. Platinum or platinum-iridium catalysts are employed at loadings between 0.5 and 2.0 milligrams per square centimetre to achieve satisfactory reaction kinetics.

The electrolyser operates at cell voltages between 1.8 and 2.2 volts, with current densities ranging from 0.2 to 1.0 amperes per square centimetre, depending on the desired hydrogen production rate. Power consumption typically falls between 50 and 150 watts during active electrolysis.

4.3 Control Electronics. Microprocessor-based control systems regulate electrolysis duration, current density, and water flow rate to achieve target dissolved hydrogen concentrations. Redox sensors or dissolved hydrogen electrodes provide real-time feedback, enabling closed-loop concentration control.

4.4 Storage and Dispensing. Hydrogen-enriched water may be dispensed immediately or temporarily stored in pressurised vessels with minimal headspace to retard hydrogen escape. Some advanced systems employ aluminium-lined pouches or glass containers with gas-impermeable seals to extend product shelf-life.

5. Performance Characteristics and Stability

Commercial PEM-based hydrogen water dispensers typically achieve dissolved hydrogen concentrations between 0.8 and 1.6 milligrams per litre in freshly dispensed water. Concentration stability in open containers decreases exponentially, with half-lives ranging from 2 to 6 hours depending on temperature, agitation, and surface-to-volume ratio.

Critically, the concentration of dissolved hydrogen can be verified through established analytical methods, including gas chromatography with thermal conductivity detection or electrochemical sensors calibrated against hydrogen-saturated reference solutions. This verifiability distinguishes hydrogen-enriched water from numerous other functional beverages whose active constituents remain poorly characterised.

6. Evidence Base and Critical Perspective

Whilst preclinical studies have demonstrated antioxidant and cytoprotective effects of hydrogen-enriched water in animal models, the human clinical evidence remains heterogeneous and methodologically limited. Systematic reviews have identified issues including small sample sizes, inadequate blinding, and publication bias. The precise dosing requirements, optimal concentration ranges, and long-term safety profile require further elucidation through rigorous clinical investigation.

7. Conclusion

Hydrogen-enriched water dispensers incorporating PEM electrolysers represent a technologically sophisticated application of electrochemical engineering to consumer health devices. These systems can reliably generate and deliver dissolved molecular hydrogen at concentrations approaching saturation levels. However, consumers and practitioners should maintain appropriate scientific scepticism regarding health claims until such time as robust clinical evidence emerges from well-designed trials.
