Introduction
Basic Working Principle:
RO water is further purified by a resin filter before being added to the dedicated water tank of the PEM electrolyzer. After passing through a second resin filter for further purification, the purified water (TDS=0) is supplied to the PEM electrolyzer. The electrolyzer operates with constant current to generate hydrogen and oxygen. Oxygen is vented, while hydrogen enters the dialysis membrane fibers (hollow fibers), passing through the membrane wall and diffusing into the inner core. RO drinking water flows through the inner core of the dialysis membrane fibers, where the hydrogen molecules from the outer side combine with it, forming hydrogen-rich water that is safe to drink.
The system automatically controls the operation of the PEM electrolyzer using a pressure switch, while the water level sensor in the tank monitors the water level to ensure the electrolyzer does not operate without sufficient water.
Installation and Connection:
Simply embed the module into the RO system. Connect the RO water inlet to the hydrogen-rich water module's water inlet, and connect the water outlet of the module to the RO system's outlet before the control valve.
Share:
Product Description
Hydrogen Energy Storage Systems for Clean Power
Energy storage plays a critical role in the clean energy transition. Our PEM electrolyzers enable efficient hydrogen production that can be stored and used as an energy source for fuel cells, offering a sustainable solution for clean energy storage and power generation.
Basic Working Principle:
RO water is further purified by a resin filter before being added to the dedicated water tank of the PEM electrolyzer. After passing through a second resin filter for further purification, the purified water (TDS=0) is supplied to the PEM electrolyzer. The electrolyzer operates with constant current to generate hydrogen and oxygen. Oxygen is vented, while hydrogen enters the dialysis membrane fibers (hollow fibers), passing through the membrane wall and diffusing into the inner core. RO drinking water flows through the inner core of the dialysis membrane fibers, where the hydrogen molecules from the outer side combine with it, forming hydrogen-rich water that is safe to drink.
The system automatically controls the operation of the PEM electrolyzer using a pressure switch, while the water level sensor in the tank monitors the water level to ensure the electrolyzer does not operate without sufficient water.
Installation and Connection:
Simply embed the module into the RO system. Connect the RO water inlet to the hydrogen-rich water module's water inlet, and connect the water outlet of the module to the RO system's outlet before the control valve.
Module Components:

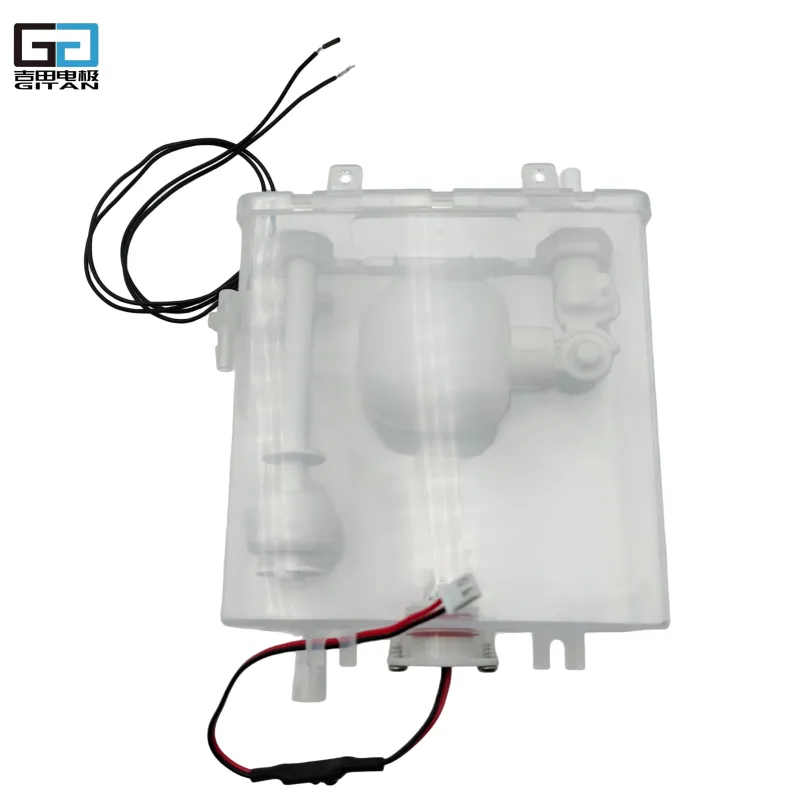

1 water tank
2 resin filters
1 electrolyzer with 75ml hydrogen output per minute
1 dialysis membrane tube
1 pressure sensor
1 constant current power supply with switch
Other necessary tubing components
Application Area
| Application Area | Function & Application Details | Key Equipment |
| Drinking Water Industry | Applied in household & large-scale water treatment. Regular consumption of hydrogen-rich water eliminates harmful free radicals, helps prevent diseases (e.g., diabetes, gout, constipation), and protects health. | Hydrogen-rich water systems, Water treatment equipment |
| Food & Beverage Industry | Establishing hydrogen-health-themed restaurants. Hydrogen-enriched water can be used in soups, drinking water, meals, and cooking. | Hydrogen-rich water systems |
| Agriculture | Plant/Animal Cultivation: Hydrogen-rich water accelerates growth of plants/animals, reduces harmful bacteria naturally, and improves taste/safety of agricultural products. | Hydrogen-rich water systems |
| Healthcare | Hydrogen exhibits health benefits (e.g., antioxidant, anti-inflammatory). Hydrogen/oxygen electrolyzers produce hydrogen for medical institutions/households (e.g., hydrogen inhalation therapy, hydrogen water preparation). | Hydrogen-oxygen ventilators, Hydrogen electrolyzers |
| Beauty Industry | Hydrogen-rich water from generators is used for hair care, facial cleansing, and skincare. Also used to produce hydrogen masks, offering antioxidant effects to slow aging. | Hydrogen water generators |
| Elderly Care | Hydrogen-rich water/hydrogen gas may help prevent Alzheimer’s, improve memory, etc. Installed in nursing homes for daily drinking and assisted breathing therapy. | Hydrogen-rich water systems, Hydrogen-oxygen ventilators |
| Key Terms: | ||
| Hydrogen-rich water : Water infused with dissolved molecular hydrogen (H₂). | ||
| Hydrogen-oxygen ventilator : Device for inhaling hydrogen-oxygen gas mixtures. | ||
| Free radicals : Unstable molecules causing oxidative stress. | ||
| Antioxidant: Neutralizes free radicals, reducing cellular damage. | ||
| Hydrogen electrolyzer: Equipment splitting water into hydrogen and oxygen gases. | ||
