Introduction

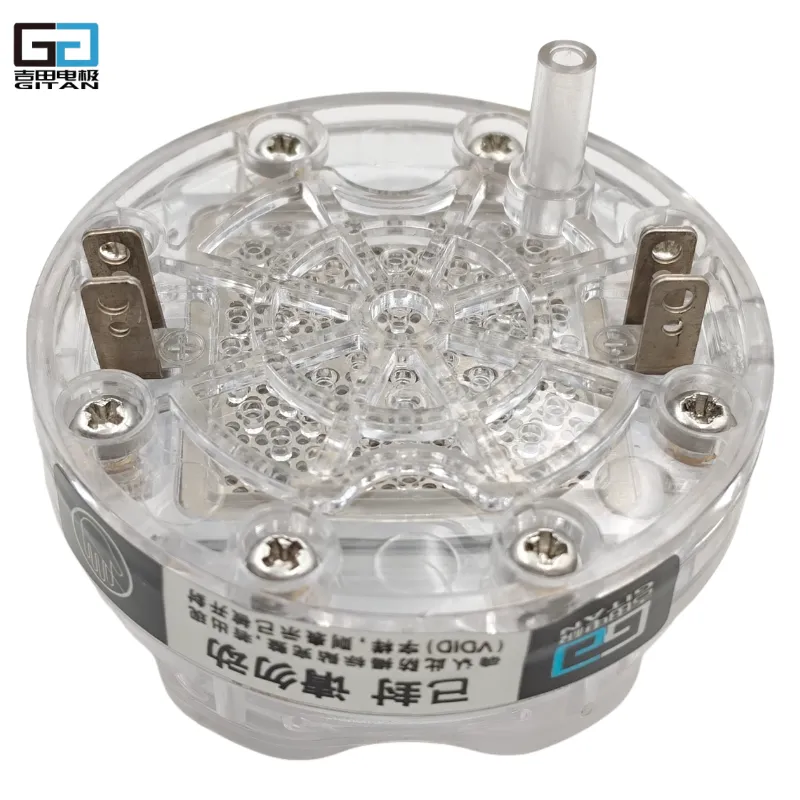

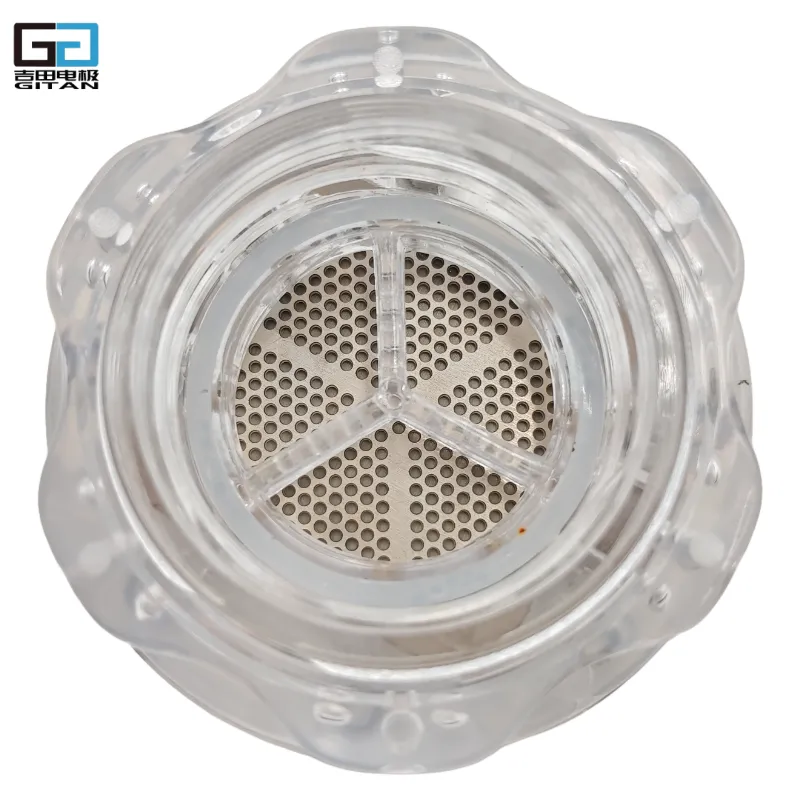

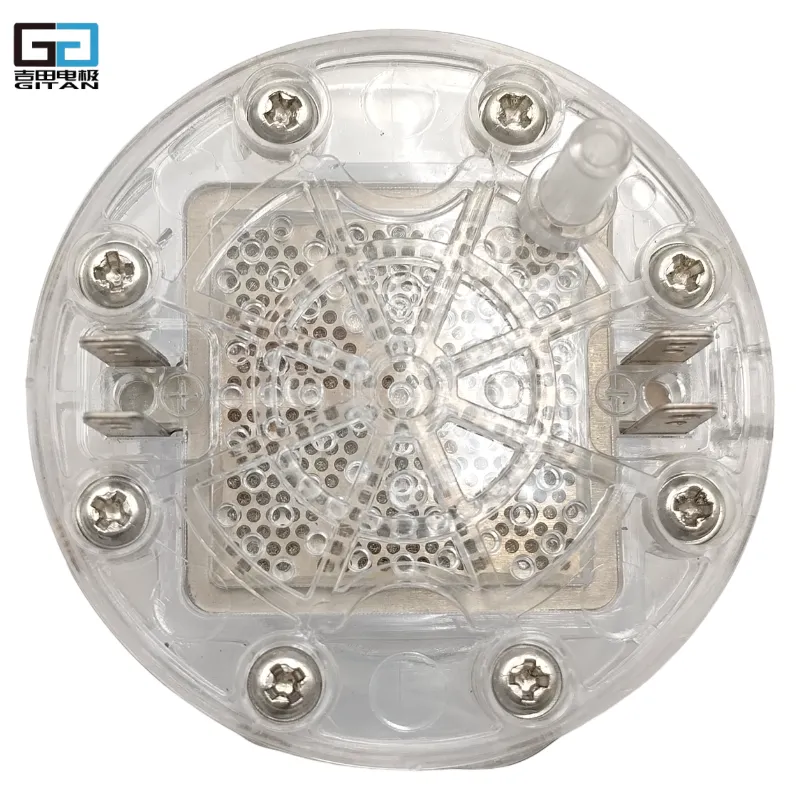

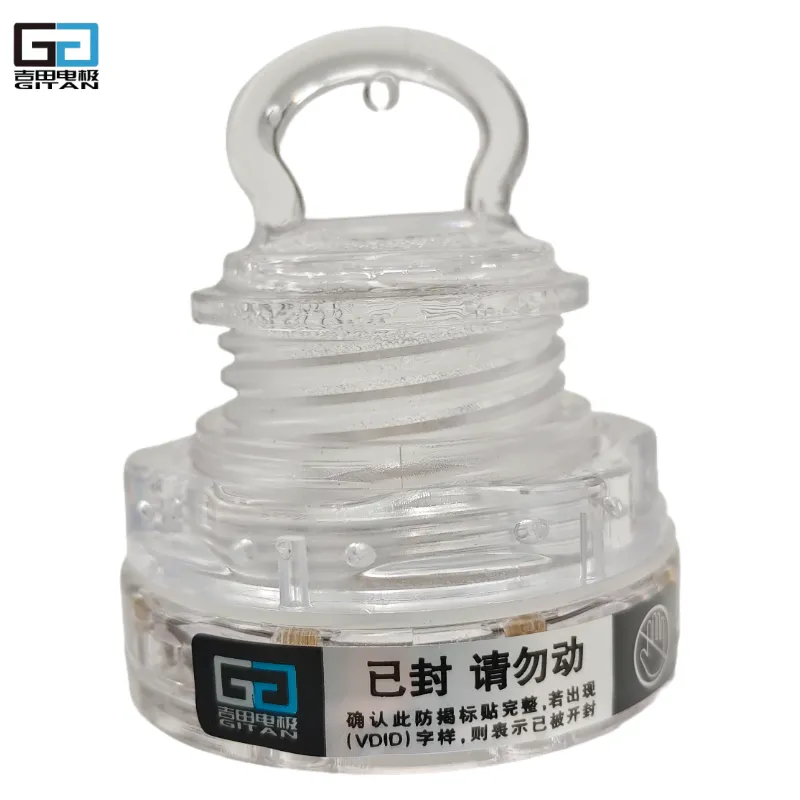

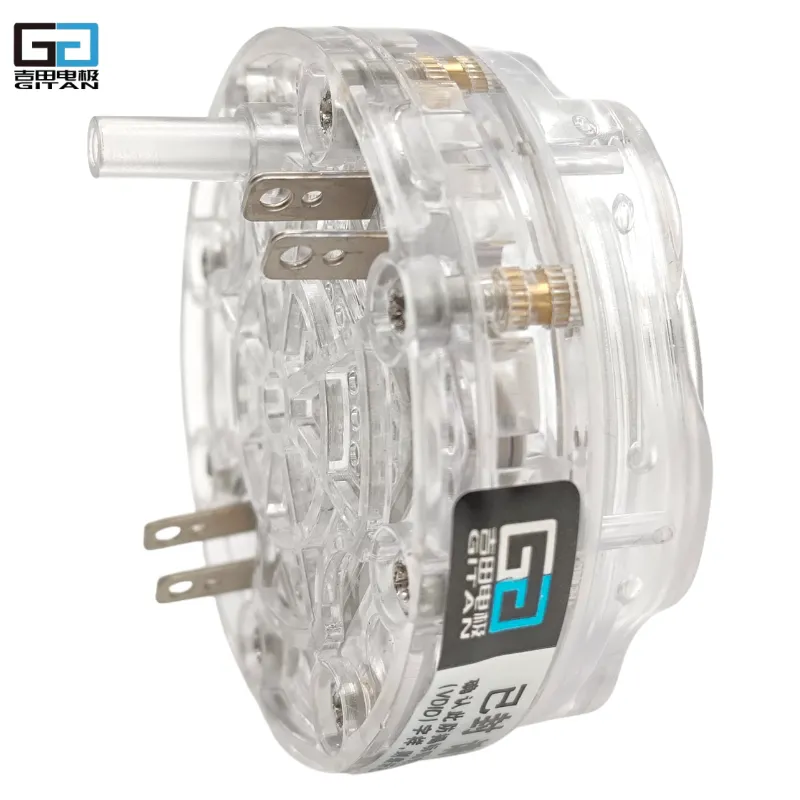

The core of our hydrogen water cup base is a PEM electrolyzer, which utilizes advanced Proton Exchange Membrane (PEM) technology to efficiently split water molecules into hydrogen and oxygen. The hydrogen gas is dissolved into the water, while the oxygen is expelled from the base, ensuring a steady and high-quality infusion of hydrogen.
Share:
Product Description
Our Hydrogen Water Cup Base is designed to revolutionize the way you enjoy hydrogen-rich water. Featuring a mini PEM electrolyzer inside, this innovative base provides a convenient and effective solution for generating high-quality hydrogen water on the go.
The core of our hydrogen water cup base is a PEM electrolyzer, which utilizes advanced Proton Exchange Membrane (PEM) technology to efficiently split water molecules into hydrogen and oxygen. The hydrogen gas is dissolved into the water, while the oxygen is expelled from the base, ensuring a steady and high-quality infusion of hydrogen.
Compact and Portable
Designed to fit seamlessly into your daily routine, the compact size of the base makes it perfect for travel, office, or home use. The small yet powerful design allows you to generate hydrogen water anywhere, anytime.
Health Benefits of Hydrogen-Rich Water
Hydrogen-rich water is known for its antioxidant properties, which can help neutralize harmful free radicals, promote healthy skin, and improve overall wellness. By integrating the mini PEM electrolyzer into the base, you can enjoy these benefits in every sip of water.
Easy to Use
Our hydrogen water cup base is user-friendly, making it easy to integrate into your lifestyle. Simply attach the cup to the base, press the button, and let the mini PEM electrolyzer work its magic. Enjoy fresh, hydrogen-enriched water in seconds.
Durable and Safe
Built with high-quality materials, the base is designed for long-lasting performance. It is also safe to use, with built-in protections against overheating, overcharging, and water leakage, ensuring a hassle-free experience.
Whether you're at home, at the gym, or traveling, the Hydrogen Water Cup Base provides a simple, efficient way to enjoy the many health benefits of hydrogen water. Ideal for personal hydration, wellness therapy, and skincare, this product is a must-have for anyone looking to improve their daily health routine.
Mini PEM Electrolyzer for high-efficiency hydrogen production
Portable and Compact design for convenience
Health benefits including antioxidant-rich water
Easy to use and maintain for everyday hydration
Durable and Safe construction for peace of mind

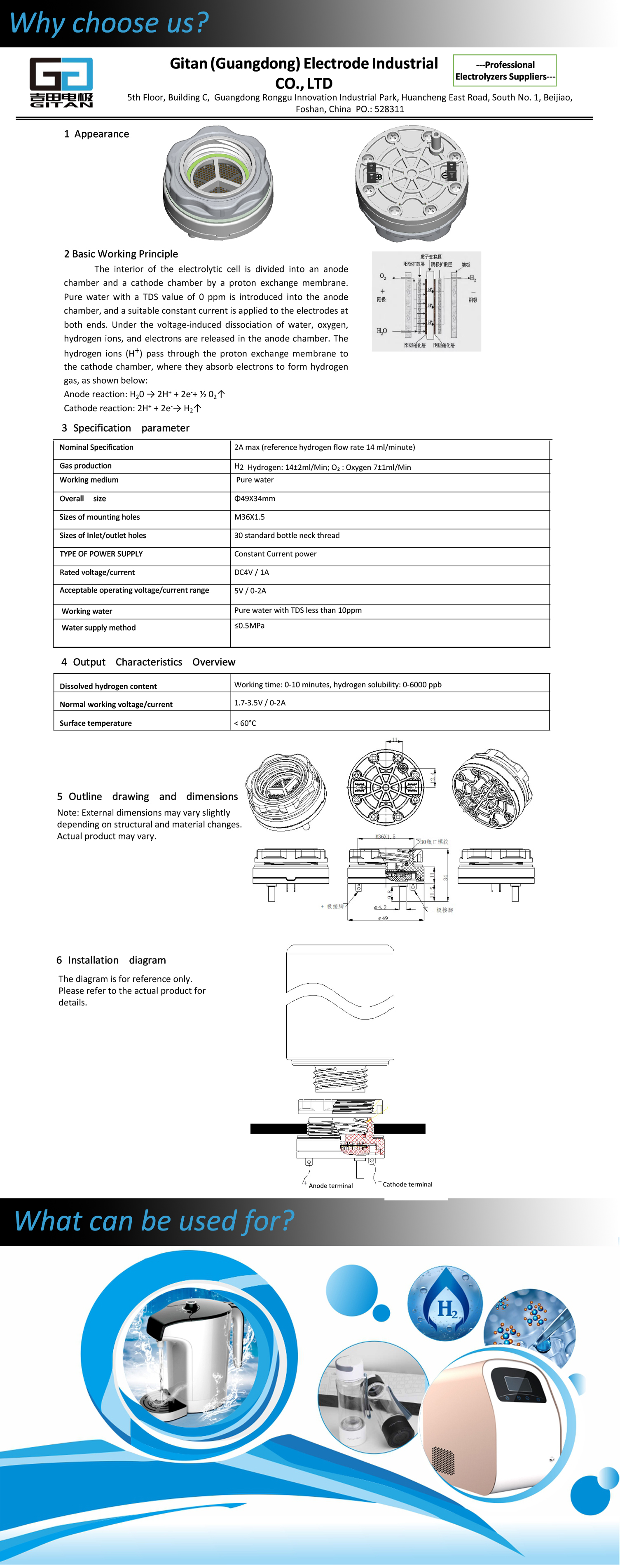

Specification
| Nominal hydrogen gas production | 2A max (Reference: 14ml/min) |
| Nominal gas production per minute | H₂: 14±2ml/min, O₂: 7±1ml/min |
| Working medium | Purified water (TDS < 5PPM) |
| Inlet/Outlet hole size | 30 standard neck threads |
| Overall size | Φ49 x 34mm |
| Mounting hole size | M36 x 1.5 |
| Type of power supply | Constant current power |
| Rated voltage/current | DC 4V / 1A |
| Acceptable working voltage/current | DC ≤ 5V / ≤ 0~2A |
| Working temperature | 0-60°C |
| Pressure resistance | ≤ 0.5MPa (≤ 72.52psi) |
| Dissolved hydrogen content | 0-6000ppb (working time: 0-10min) |
| Normal working voltage/current | 1.7-3.5V / 0-2A |
| Surface temperature | < 60°C |
Need Custom Design and Development for CCM And PEM Electrolyzers?
We strongly support customer personalisation and customisation, providing the most suitable solutions based on different customer needs. If you have any customisation requirements, please contact us and we will provide you with the most professional advice and products.
