Introduction
The Hydrogen-rich Water Module with PEM electrolyzer and 1LPM flow rate efficiently generates drinkable hydrogen-rich water by integrating with RO water systems. Featuring a hydrogen dissolution pump, resin filters, and a constant current power supply, this system ensures high-quality water purification and enhanced hydrogen infusion. Ideal for homes and businesses, it provides eco-friendly, healthy hydration solutions.
Share:
Product Description
Basic Working Principle:
RO water enters the right-side hydrogen dissolution pump and is stored in the RO drinking water tank. The water is further purified by a resin filter and then transferred to the left-side PEM electrolyzer-specific water tank to supply purified water (TDS=0) to the PEM electrolyzer.
When the PEM electrolyzer is powered on, it generates hydrogen and oxygen. The oxygen is discharged, and the hydrogen dissolution pump extracts hydrogen and RO drinking water from the right-side tank, then feeds them into the hydrogen mixing tube to form drinkable hydrogen-rich water.
Installation and Connection:
Simply integrate the module into the RO device. Connect the RO water to the pump's water inlet of the hydrogen-rich water module. The module's water outlet should be connected to the RO device's outlet valve before the control valve.

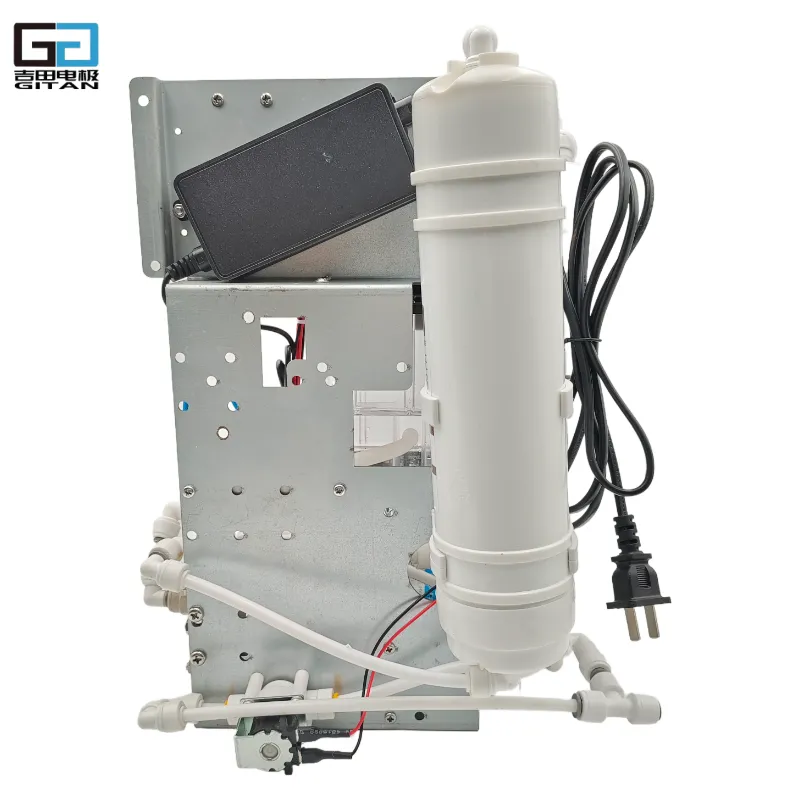

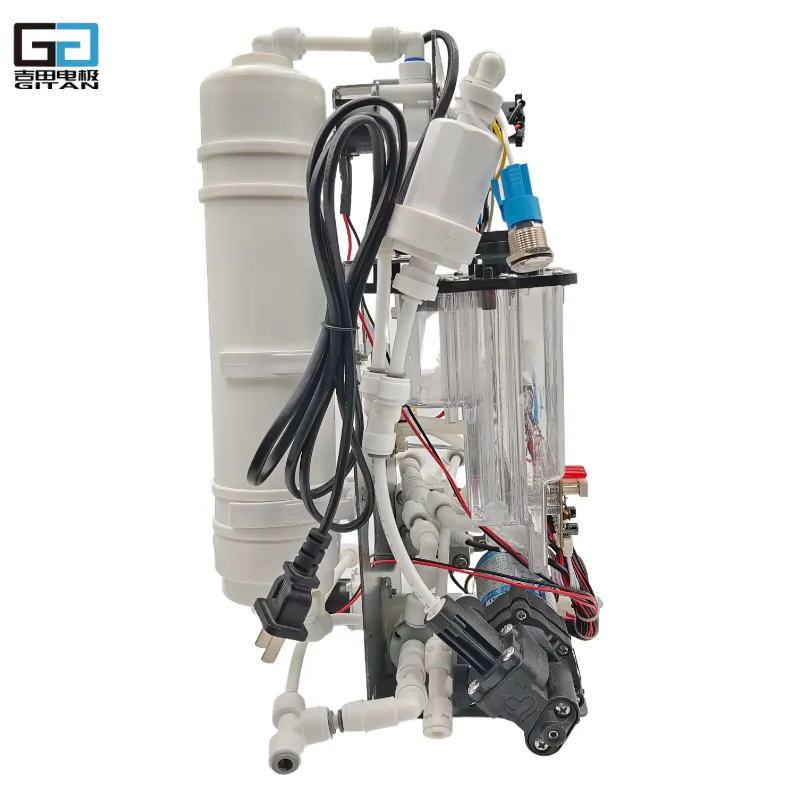

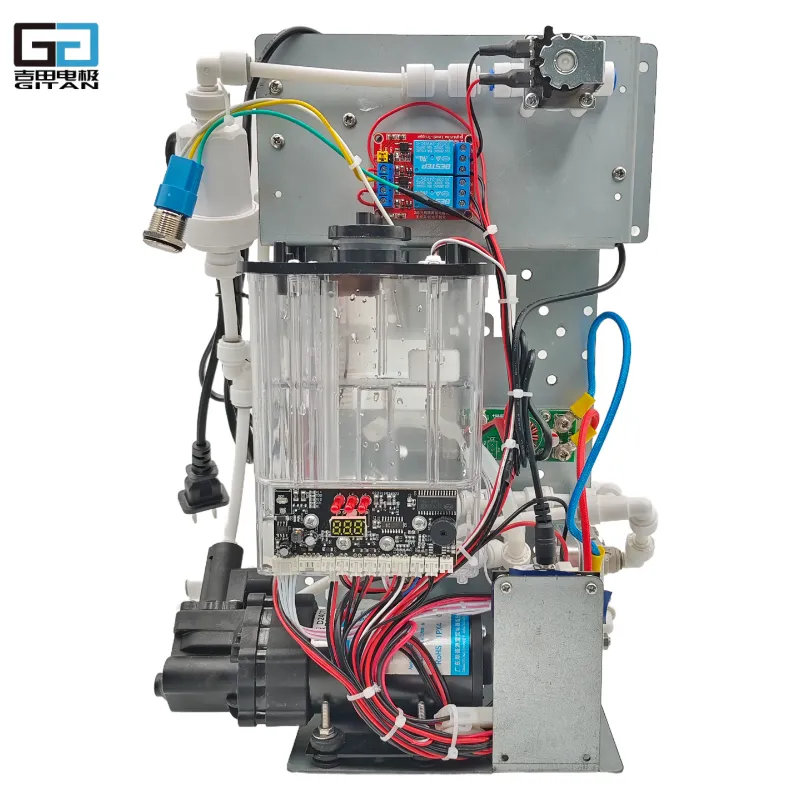

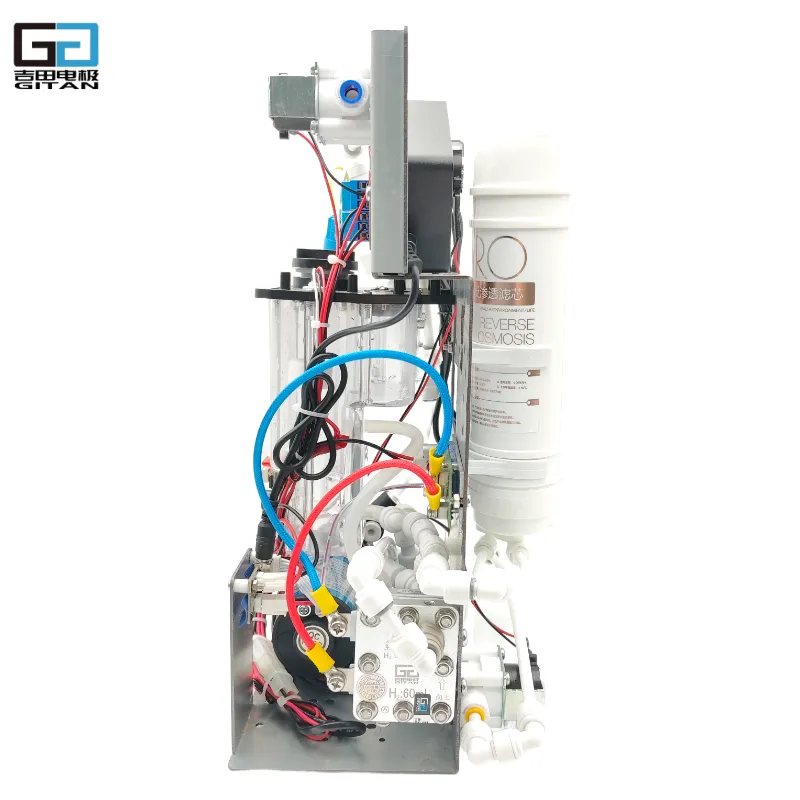

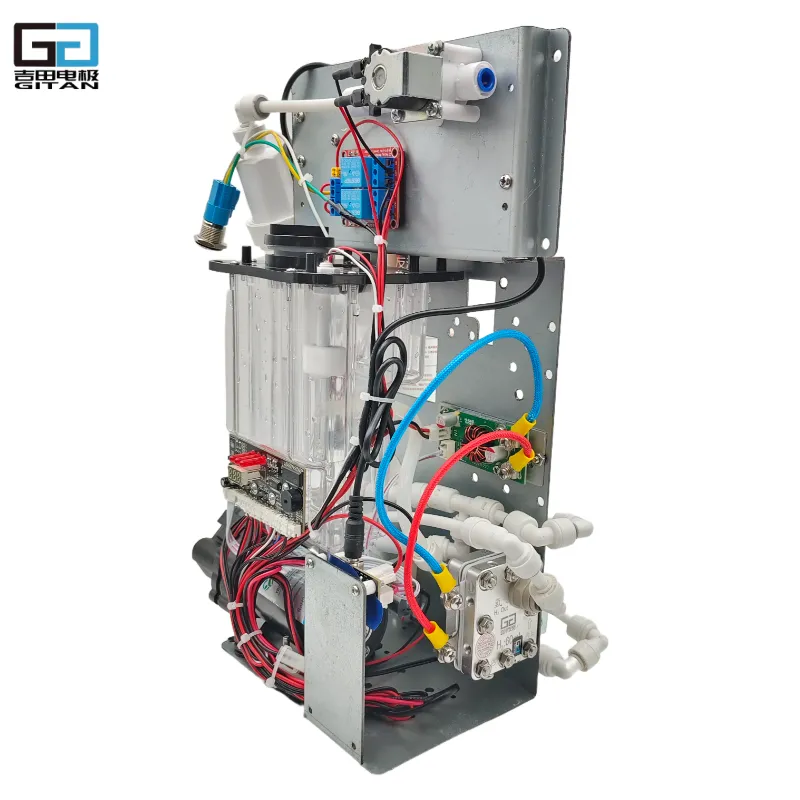

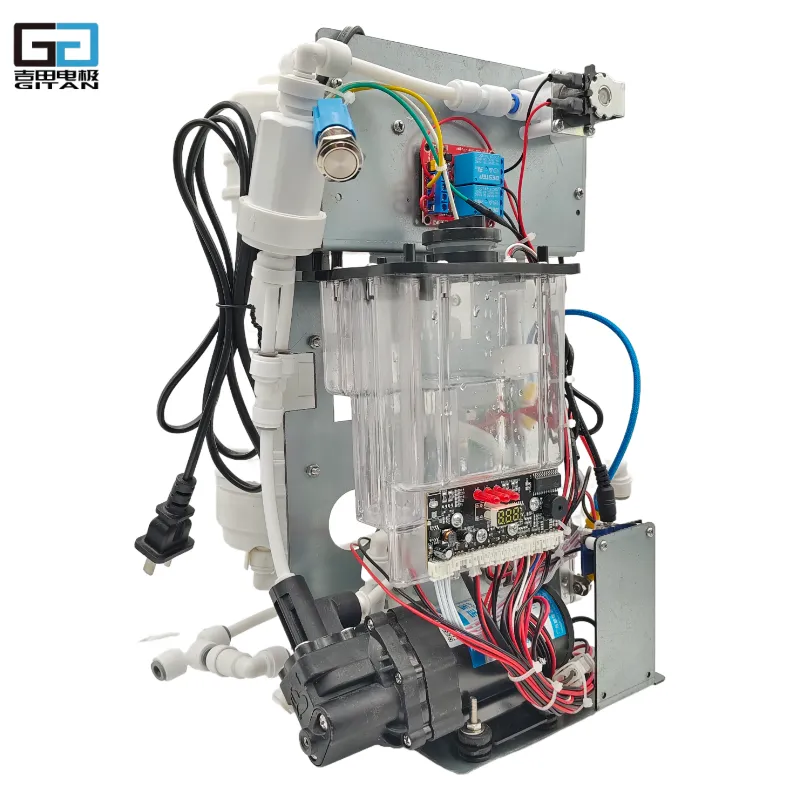

Module Components:
Water Tank (2)
Resin Filter (2)
100ml Hydrogen Generator/Minute Electrolyzer (1)
Hydrogen Dissolution Pump (1)
Constant Current Power Supply with Switch (1)
Relay
Hydrogen Mixing Tube (1)
Electromagnetic Valve (1)
Additional Piping Accessories
Application Area
| Application Area | Function & Application Details | Key Equipment |
| Drinking Water Industry | Applied in household & large-scale water treatment. Regular consumption of hydrogen-rich water eliminates harmful free radicals, helps prevent diseases (e.g., diabetes, gout, constipation), and protects health. | Hydrogen-rich water systems, Water treatment equipment |
| Food & Beverage Industry | Establishing hydrogen-health-themed restaurants. Hydrogen-enriched water can be used in soups, drinking water, meals, and cooking. | Hydrogen-rich water systems |
| Agriculture | Plant/Animal Cultivation: Hydrogen-rich water accelerates growth of plants/animals, reduces harmful bacteria naturally, and improves taste/safety of agricultural products. | Hydrogen-rich water systems |
| Healthcare | Hydrogen exhibits health benefits (e.g., antioxidant, anti-inflammatory). Hydrogen/oxygen electrolyzers produce hydrogen for medical institutions/households (e.g., hydrogen inhalation therapy, hydrogen water preparation). | Hydrogen-oxygen ventilators, Hydrogen electrolyzers |
| Beauty Industry | Hydrogen-rich water from generators is used for hair care, facial cleansing, and skincare. Also used to produce hydrogen masks, offering antioxidant effects to slow aging. | Hydrogen water generators |
| Elderly Care | Hydrogen-rich water/hydrogen gas may help prevent Alzheimer’s, improve memory, etc. Installed in nursing homes for daily drinking and assisted breathing therapy. | Hydrogen-rich water systems, Hydrogen-oxygen ventilators |
| Key Terms: | ||
| Hydrogen-rich water : Water infused with dissolved molecular hydrogen (H₂). | ||
| Hydrogen-oxygen ventilator : Device for inhaling hydrogen-oxygen gas mixtures. | ||
| Free radicals : Unstable molecules causing oxidative stress. | ||
| Antioxidant: Neutralizes free radicals, reducing cellular damage. | ||
| Hydrogen electrolyzer: Equipment splitting water into hydrogen and oxygen gases. | ||
