Introduction

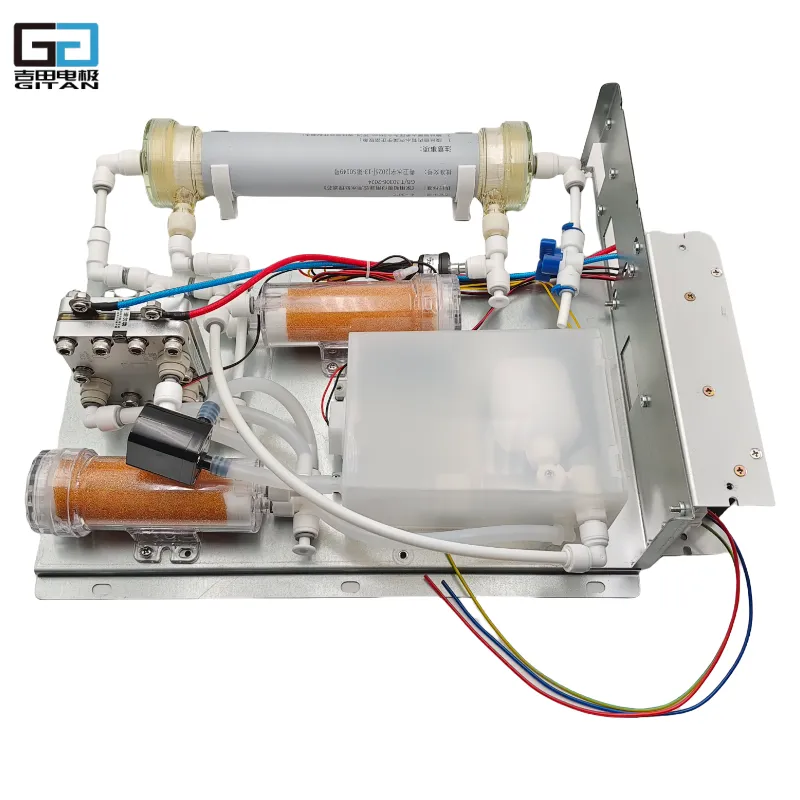

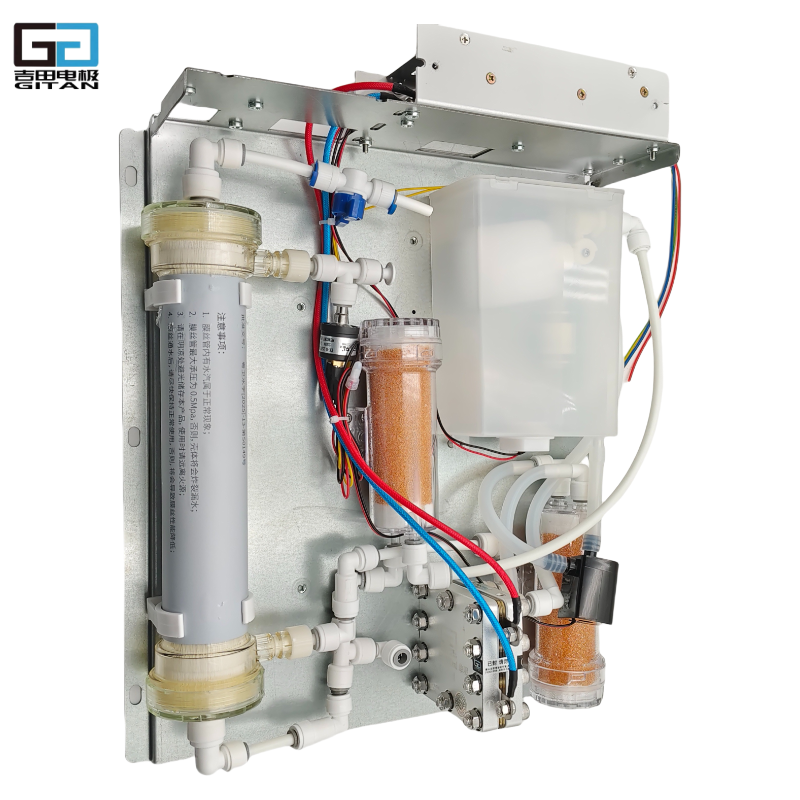

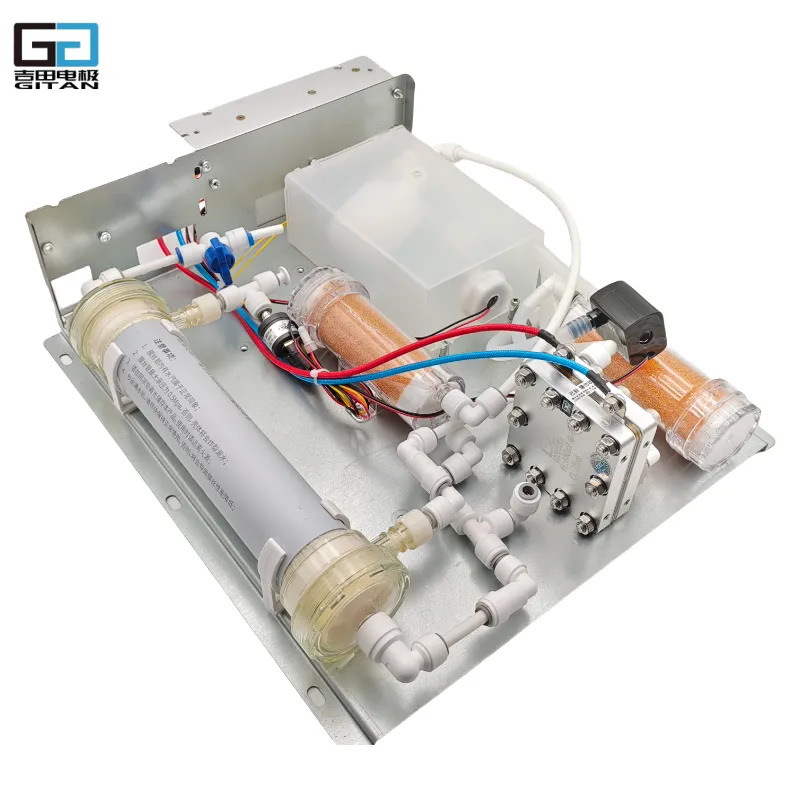

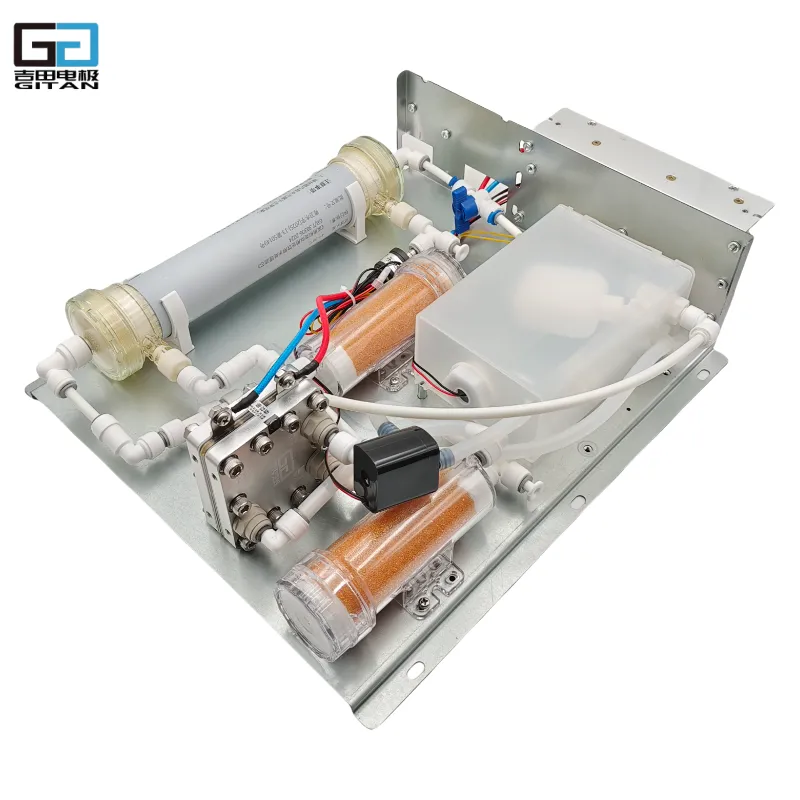

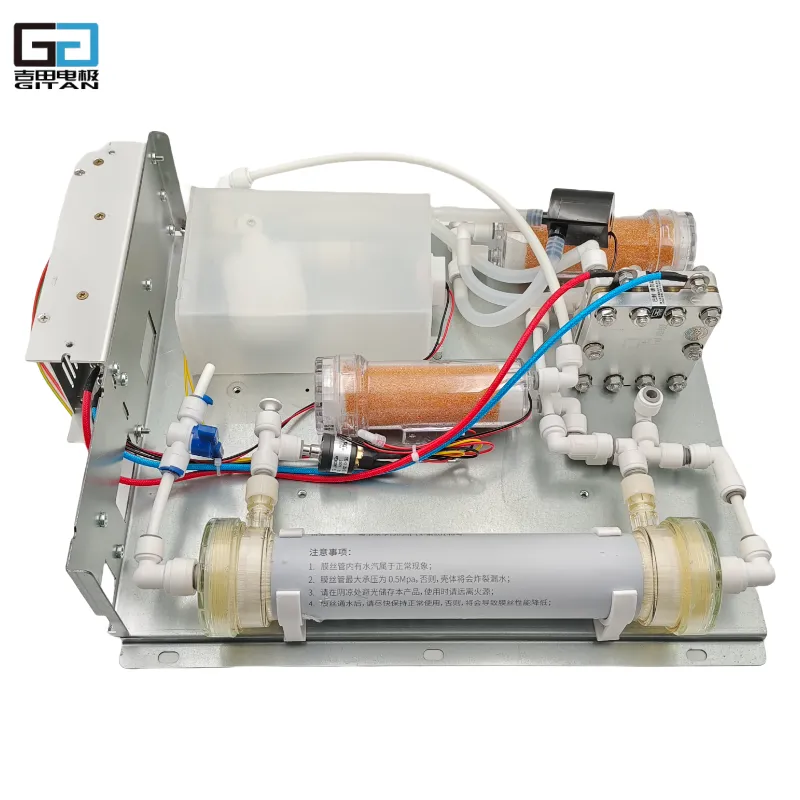

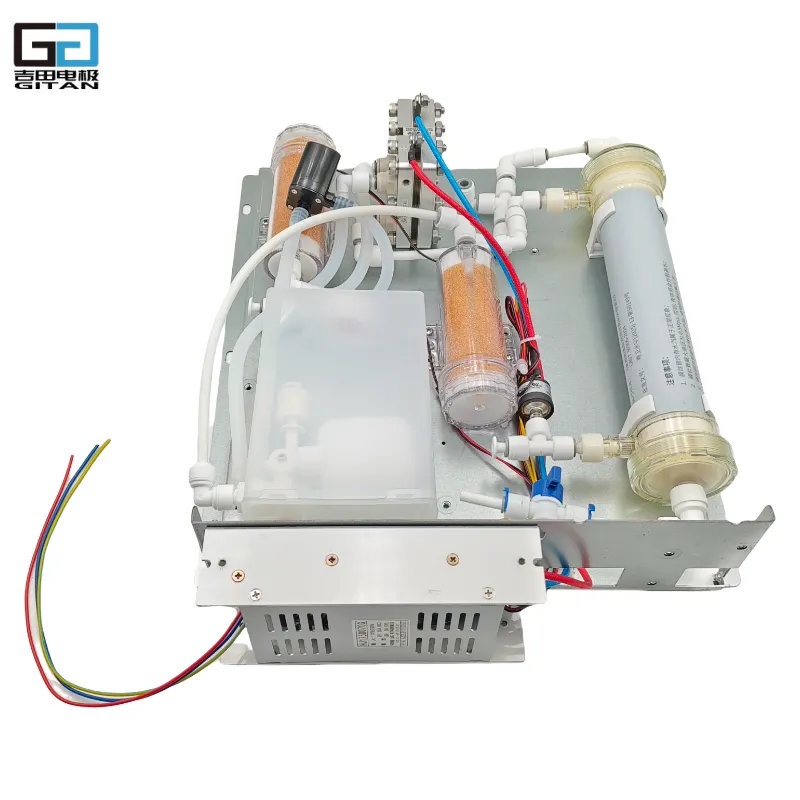

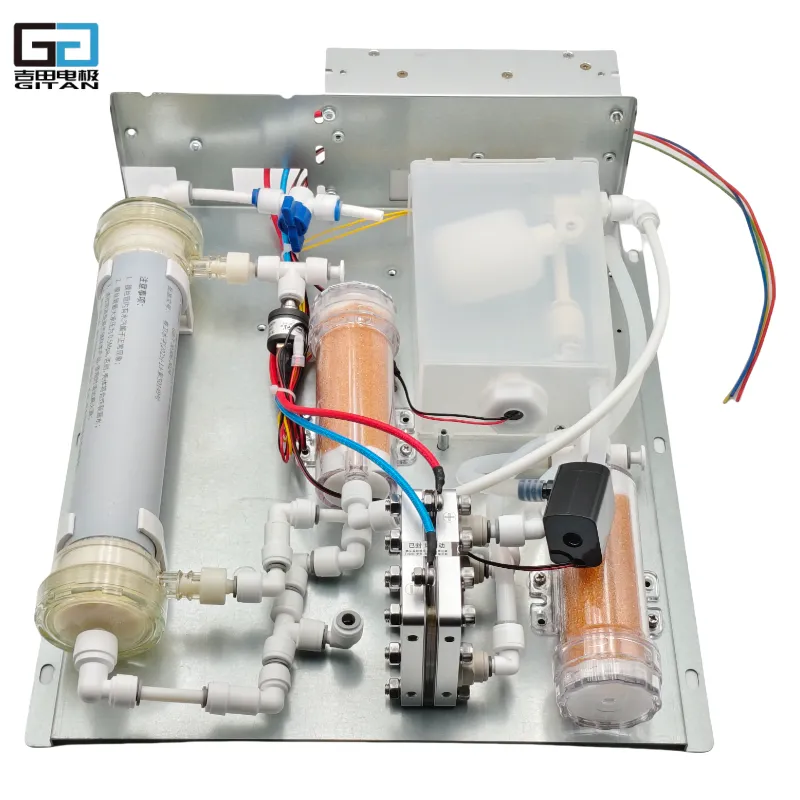

The Dialysis Membrane Hydrogen-rich Water Module (3LPM flow rate) combines a PEM electrolyzer and dialysis membrane technology to produce hydrogen-rich water. The system integrates seamlessly with RO water systems and uses a resin filter for purification. It ensures high-quality hydration by infusing hydrogen into drinking water, ideal for both home and industrial use. The module features automatic control, a pressure switch, and a water level sensor for added reliability and protection.
Share:
Product Description
Basic Working Principle:
RO water is first purified by a resin filter and then transferred to the PEM electrolyzer-specific water tank. The water is further purified by a second resin filter before being supplied to the PEM electrolyzer (TDS = 0). When the electrolyzer is powered on, it generates hydrogen and oxygen. The oxygen is discharged, while the hydrogen enters the dialysis membrane fibers (hollow fibers). Hydrogen molecules permeate through the fiber wall into the inner core, where they combine with the RO drinking water passing through the inner holes of the fibers to form drinkable hydrogen-rich water.
The equipment is automatically controlled by a pressure switch to start/stop the operation of the PEM electrolyzer. A water level sensor monitors the water level in the tank, protecting the electrolyzer from running dry.
Installation and Connection:
Simply integrate the module into the RO device. Connect the RO water to the water inlet of the hydrogen-rich water module. The module's outlet should be connected to the outlet valve of the RO device before the control valve.
Module Components:
Water Tank (1)
Resin Filter (2)
150ml Hydrogen Generator/Minute Electrolyzer (1)
Membrane Tube (1)
Pressure Sensor (1)
Constant Current Power Supply with Switch (1)
Water Tank Circulation Pump (1)
Additional Piping Accessories
Application Area
| Application Area | Function & Application Details | Key Equipment |
| Drinking Water Industry | Applied in household & large-scale water treatment. Regular consumption of hydrogen-rich water eliminates harmful free radicals, helps prevent diseases (e.g., diabetes, gout, constipation), and protects health. | Hydrogen-rich water systems, Water treatment equipment |
| Food & Beverage Industry | Establishing hydrogen-health-themed restaurants. Hydrogen-enriched water can be used in soups, drinking water, meals, and cooking. | Hydrogen-rich water systems |
| Agriculture | Plant/Animal Cultivation: Hydrogen-rich water accelerates growth of plants/animals, reduces harmful bacteria naturally, and improves taste/safety of agricultural products. | Hydrogen-rich water systems |
| Healthcare | Hydrogen exhibits health benefits (e.g., antioxidant, anti-inflammatory). Hydrogen/oxygen electrolyzers produce hydrogen for medical institutions/households (e.g., hydrogen inhalation therapy, hydrogen water preparation). | Hydrogen-oxygen ventilators, Hydrogen electrolyzers |
| Beauty Industry | Hydrogen-rich water from generators is used for hair care, facial cleansing, and skincare. Also used to produce hydrogen masks, offering antioxidant effects to slow aging. | Hydrogen water generators |
| Elderly Care | Hydrogen-rich water/hydrogen gas may help prevent Alzheimer’s, improve memory, etc. Installed in nursing homes for daily drinking and assisted breathing therapy. | Hydrogen-rich water systems, Hydrogen-oxygen ventilators |
| Key Terms: | ||
| Hydrogen-rich water : Water infused with dissolved molecular hydrogen (H₂). | ||
| Hydrogen-oxygen ventilator : Device for inhaling hydrogen-oxygen gas mixtures. | ||
| Free radicals : Unstable molecules causing oxidative stress. | ||
| Antioxidant: Neutralizes free radicals, reducing cellular damage. | ||
| Hydrogen electrolyzer: Equipment splitting water into hydrogen and oxygen gases. | ||
