Introduction
Introducing our Flow-Type Hydrogen Water Module, designed for integration with Reverse Osmosis (RO) systems and water dispensers. This compact module is perfect for spaces with limited room, offering easy installation without the need for excessive additional accessories.
Key Features:
Efficient Hydrogen Water Generation: Utilizes a flow-type electrolyzer to convert RO water into hydrogen-rich water, ideal for drinking and wellness purposes.
Easy Installation: Simply embed the module into your existing RO system; no extra complex setup is required.
Intelligent Control: Equipped with a pressure switch to control water flow, a flow sensor to monitor water volume, and a constant current power supply for optimal electrolysis, ensuring no dry operation.
Compact Design: Ideal for applications where space is a premium, making it an excellent choice for water purifiers and dispensers.
Share:
Product Description

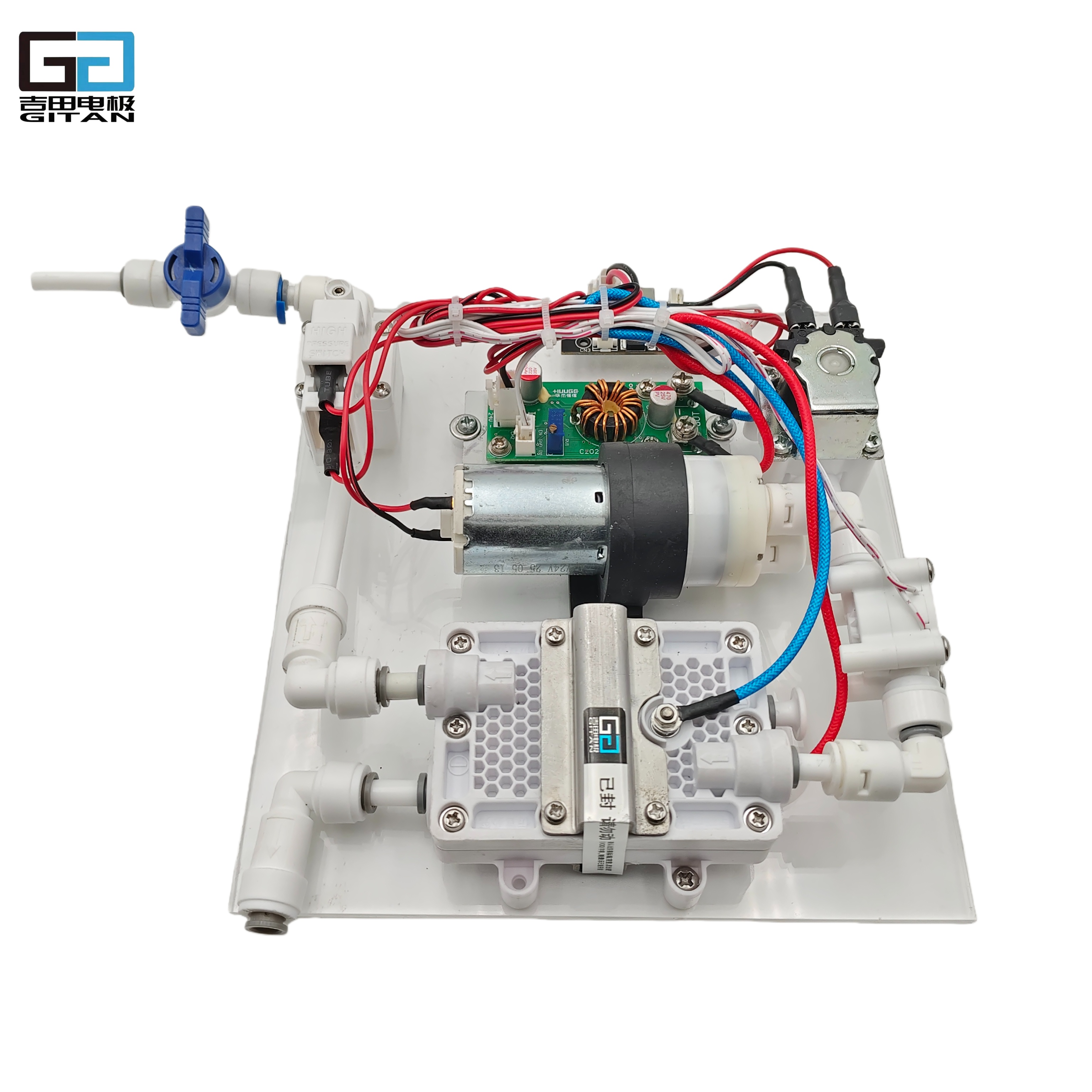

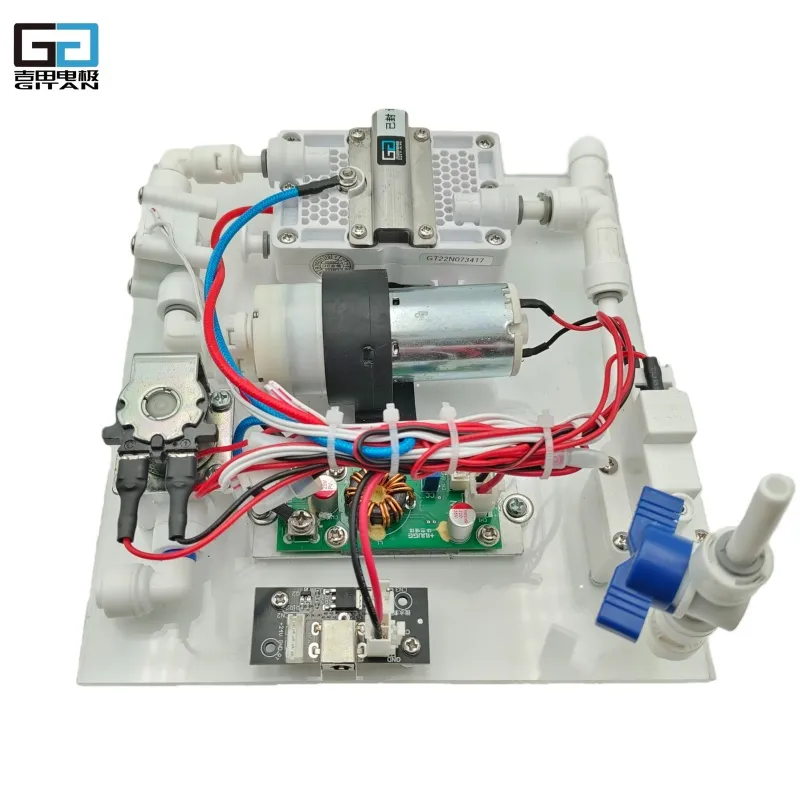

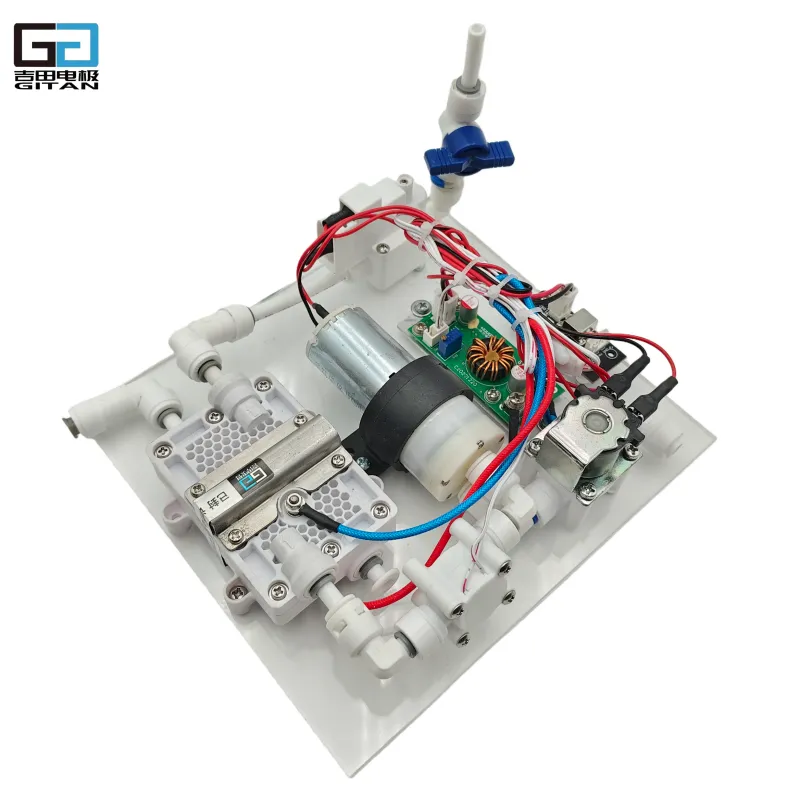

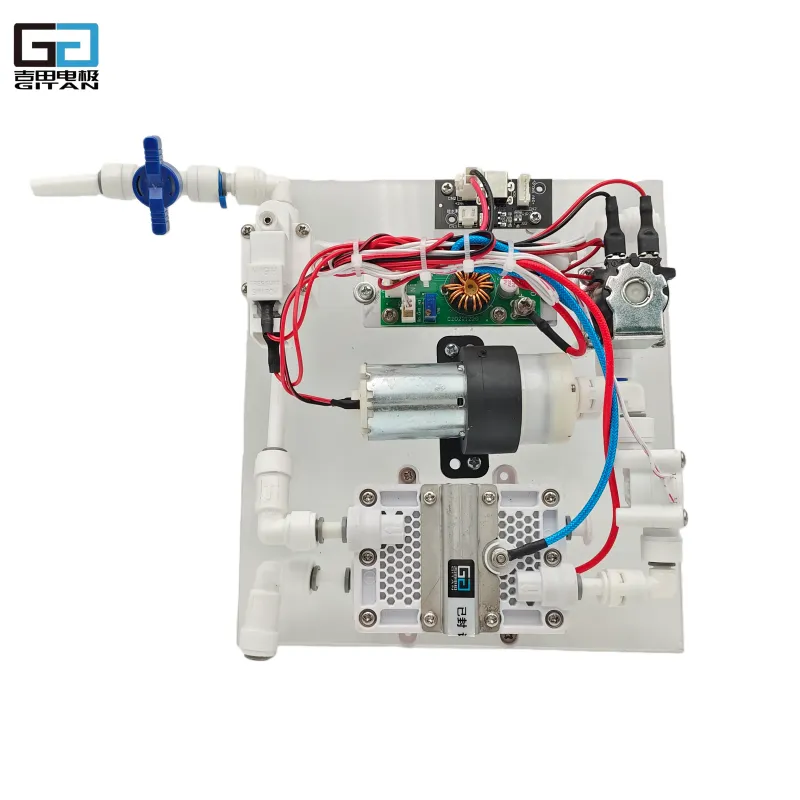

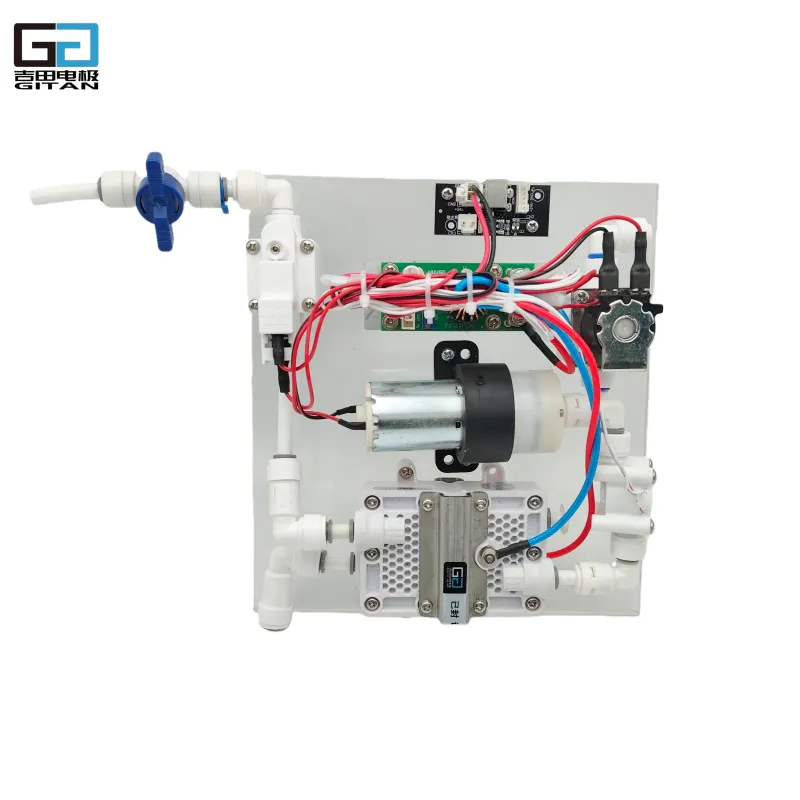

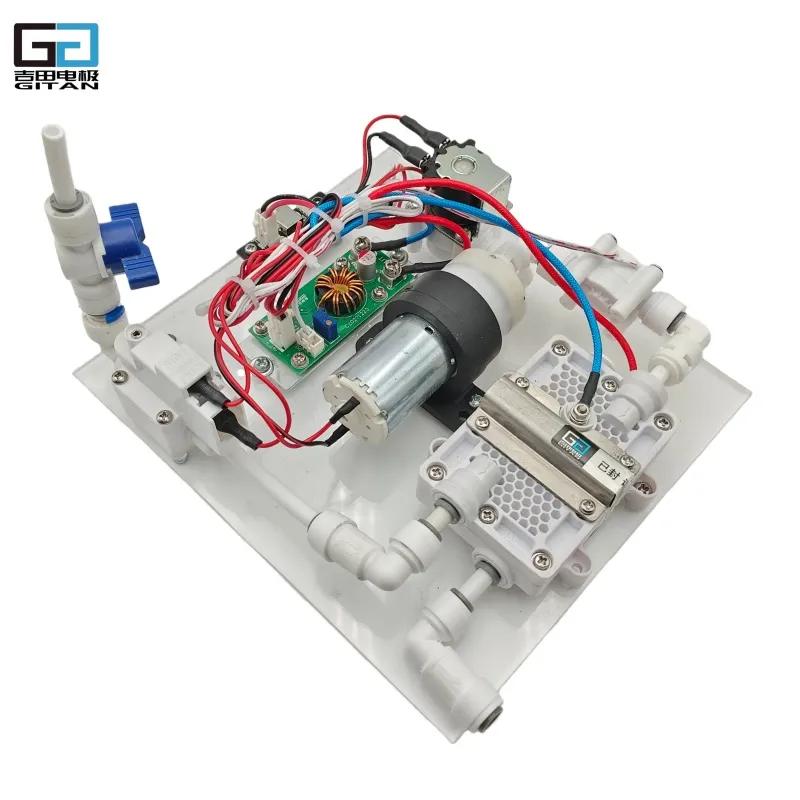

Hydrogen-Rich Water – Flow-Type Hydrogen Water Module
Basic Working Principle:
The water pump directly extracts RO water through the water inlet solenoid valve, passing through a flow sensor into the anode inlet of the electrolyzer. After detecting the water flow, the electrolyzer receives current from a constant current power supply, generating hydrogen ions at the cathode chamber to form hydrogen-rich water, which is mixed with water to create drinkable hydrogen-rich water.
A pressure switch controls the operation of the inlet solenoid valve and the pump, while the flow switch controls the start and stop of the constant current power supply to prevent the electrolyzer from running dry.
Installation & Connection:
Simply integrate the module into the RO system. Connect the RO water to the inlet of the flow-type hydrogen water module, and route the outlet of the module to the outlet control valve of the RO device.
Module Components:
Flow-type electrolyzer x 1
Pressure switch x 1
Constant current power supply x 1
Solenoid valve x 1
Flow sensor x 1
24V conversion PCB x 1
Additional piping and fittings
Application Area
| Application Area | Function & Application Details | Key Equipment |
| Drinking Water Industry | Applied in household & large-scale water treatment. Regular consumption of hydrogen-rich water eliminates harmful free radicals, helps prevent diseases (e.g., diabetes, gout, constipation), and protects health. | Hydrogen-rich water systems, Water treatment equipment |
| Food & Beverage Industry | Establishing hydrogen-health-themed restaurants. Hydrogen-enriched water can be used in soups, drinking water, meals, and cooking. | Hydrogen-rich water systems |
| Agriculture | Plant/Animal Cultivation: Hydrogen-rich water accelerates growth of plants/animals, reduces harmful bacteria naturally, and improves taste/safety of agricultural products. | Hydrogen-rich water systems |
| Healthcare | Hydrogen exhibits health benefits (e.g., antioxidant, anti-inflammatory). Hydrogen/oxygen electrolyzers produce hydrogen for medical institutions/households (e.g., hydrogen inhalation therapy, hydrogen water preparation). | Hydrogen-oxygen ventilators, Hydrogen electrolyzers |
| Beauty Industry | Hydrogen-rich water from generators is used for hair care, facial cleansing, and skincare. Also used to produce hydrogen masks, offering antioxidant effects to slow aging. | Hydrogen water generators |
| Elderly Care | Hydrogen-rich water/hydrogen gas may help prevent Alzheimer’s, improve memory, etc. Installed in nursing homes for daily drinking and assisted breathing therapy. | Hydrogen-rich water systems, Hydrogen-oxygen ventilators |
| Key Terms: | ||
| Hydrogen-rich water : Water infused with dissolved molecular hydrogen (H₂). | ||
| Hydrogen-oxygen ventilator : Device for inhaling hydrogen-oxygen gas mixtures. | ||
| Free radicals : Unstable molecules causing oxidative stress. | ||
| Antioxidant: Neutralizes free radicals, reducing cellular damage. | ||
| Hydrogen electrolyzer: Equipment splitting water into hydrogen and oxygen gases. | ||
