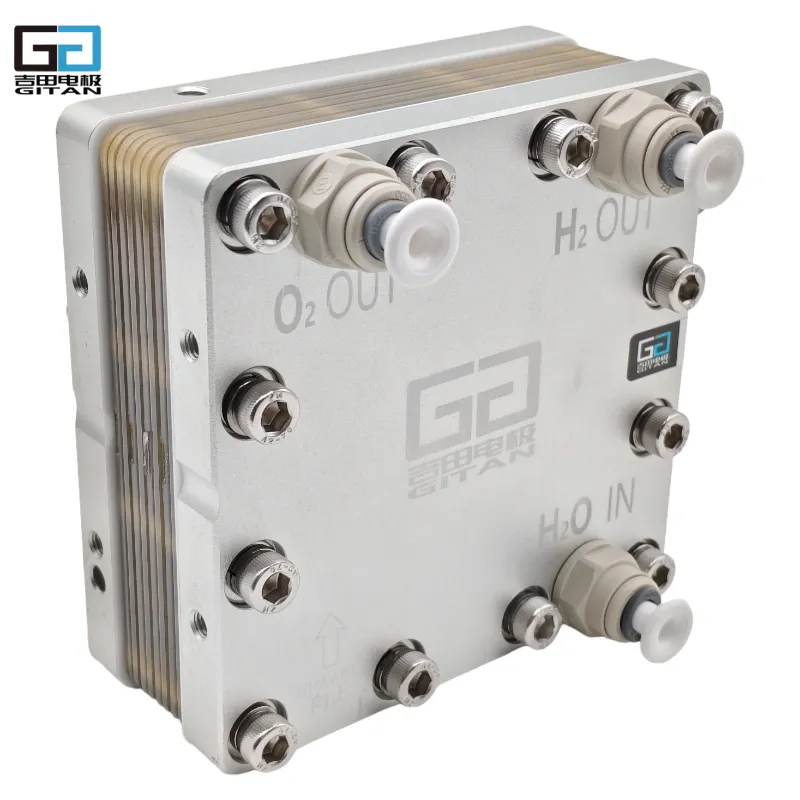

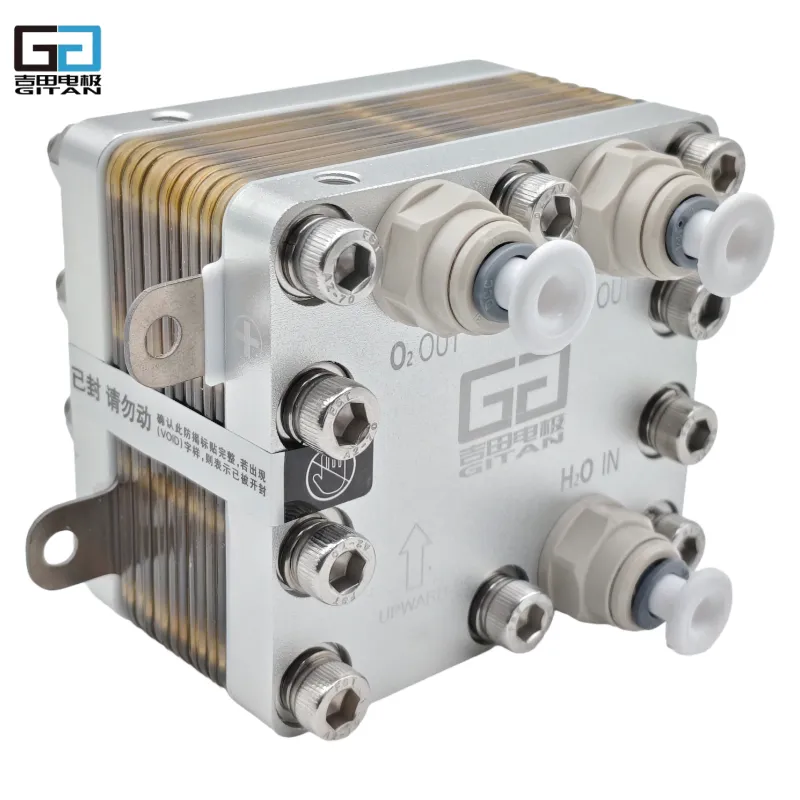

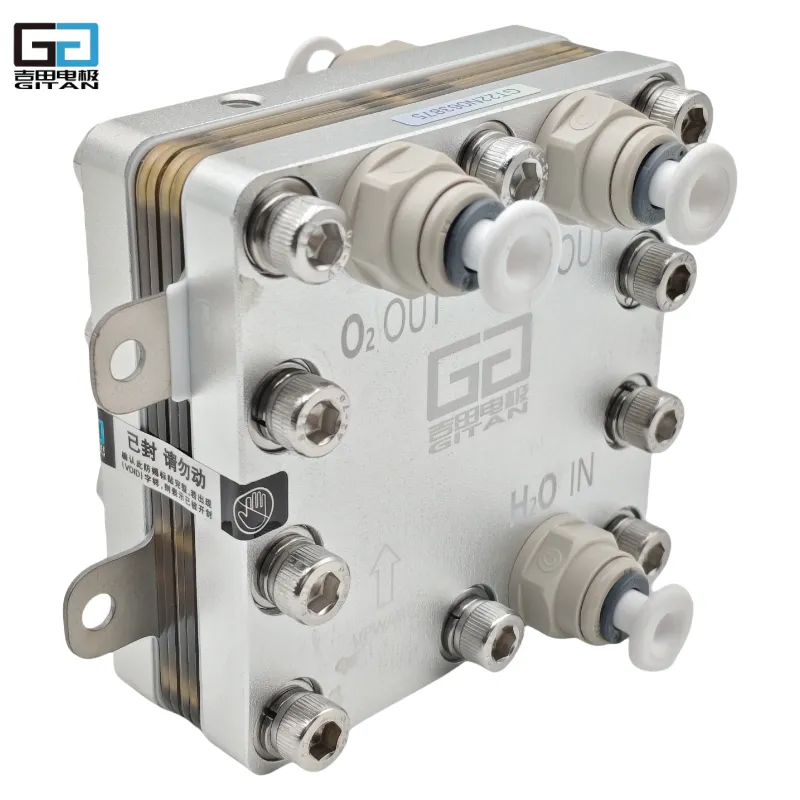

QY1200A-4300 Hydrogen Oxygen Electrolyzer

Introduction

The 1200ml Y series dual-output hydrogen-oxygen electrolyzer is composed of four layers of 300ml PEM proton exchange membranes stacked together. Adopting the chemical deposition (ELD) proton exchange membrane with independent catalyst formula and process, which has excellent technology, the catalytic layer of the membrane electrode is opaque and does not fade, the voltage is low, the calorific value is low, the performance is stable, and the service life is long. Independent industrial & structural design to ensure stable product quality.

Specification

Product Parameters



Hydrogen production rate per minute1200ml/min
Nominal gases production per minuteH2:1200±60ml/min, O2:600±30ml/min.
Working mediumPurified water(TDS<5PPM)
Inlet water pressure≤0.5MPa (≤72.52psi)
Overall size L*W*H108X108X65mm
Sizes of mounting holesM5 * 4pcs
Sizes of inlet/outlet holesΦ1/4” quick connector
Type of power supplyConstant current power
Rated voltage/currentDC12V / 40A
Acceptable working voltage/currentDC≤36V / ≤42A
Working water Pure water with TDS less than 5ppm,water temperature above 0℃&below 45℃
Water supply method Between the water tank and the module, the circulating pump supplies pressurized water for circulation, with a pressure of less than 0.5MPa and a flow rate of approximately 1000ml per minute.


Output Characteristics Overview




Normal working voltage/current6.8~9.4V /40A
Surface temperature< 60°C
Theoretical water consumptionabout 1ml/Min
Water consumption Without Hydrogen-water separationAbout 60-90 ml/Min
