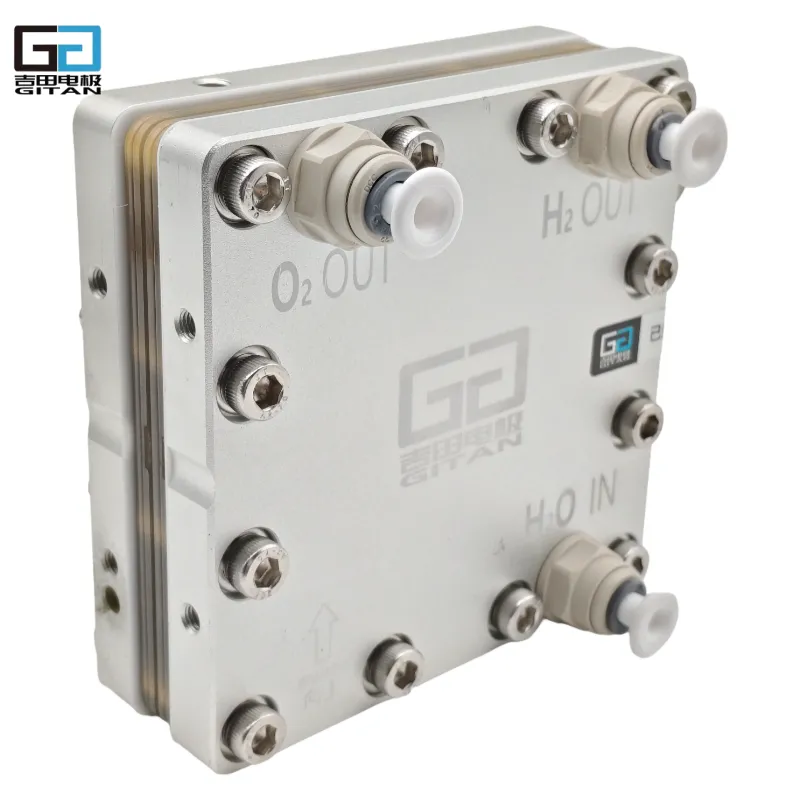

QY600A-2300 Hydrogen Oxygen Electrolyzer

Introduction

The 600ml Y Series Dual-Output Hydrogen-Oxygen Electrolyzer is composed of two layers of 300ml PEM proton exchange membranes stacked together. It utilizes independently developed chemical deposition (ELD) proton exchange membrane, which are stable and reliable in quality, ensuring stable hydrogen production. Its appearance is simple and elegant, with dependable performance.

Share:

Specification

Product Parameters



Nominal hydrogen gas production per minute600ml/min
Nominal gases production per minuteH2:600±60ml/min, O2:300±30ml/min.
Working mediumPurified water(TDS<5PPM)
Inlet water pressure≤0.5MPa (≤72.52psi)
Overall size L*W*H108X108X66mm
Sizes of mounting holesM5 * 4pcs
Sizes of inlet/outlet holesΦ1/4” quick connector
Type of power supplyConstant current power
Rated voltage/currentDC12V / 40A
Acceptable working voltage/currentDC≤36V / ≤42A
Working water Pure water with TDS less than 5ppm,water temperature above 0℃&below 45℃
Water supply method Between the water tank and the module, the circulating pump supplies pressurized water for circulation, with a pressure of less than 0.5MPa and a flow rate of approximately 500ml per minute.


Output Characteristics Overview




Normal working voltage/current3.4~4.7V /40A
Surface temperature< 60°C
Theoretical water consumptionabout 0.5ml/Min
Water consumption Without Hydrogen-water separationAbout 35-50 ml/Min
