Introduction

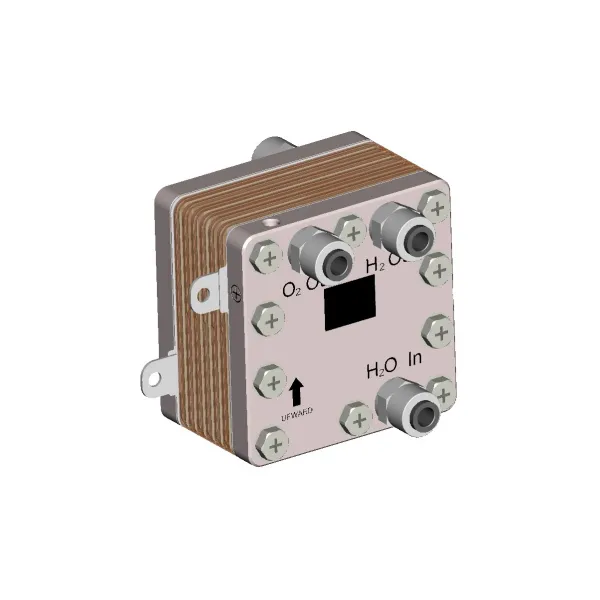

The 1200ml C Series Dual-Output Hydrogen-Oxygen Electrolyzer is composed of six layers of 200ml PEM proton exchange membranes stacked together. It utilizes independently developed chemical deposition (ELD) proton exchange membrane, which are stable and reliable in quality, ensuring stable hydrogen production. Its appearance is simple and elegant, with dependable performance.
Share:
Product Parameters
| Nominal hydrogen gas production per minute | 1200ml/min |
| Nominal gases production per minute | H2:1200±60ml/min, O2:600±30ml/min. |
| Working medium | Purified water(TDS<5PPM) |
| Inlet water pressure | ≤0.5MPa (≤72.52psi) |
| Overall size L*W*H | 96X89X82mm |
| Sizes of mounting holes | M5 * 4pcs |
| Sizes of inlet/outlet holes | Φ1/4” quick connector |
| Type of power supply | Constant current power |
| Rated voltage/current | DC18V / 26A |
| Acceptable working voltage/current | DC≤36V / ≤27A |
| Working water | Pure water with TDS less than 5ppm，water temperature above 0℃&below 45℃ |
| Water supply method | Between the water tank and the module, the circulating pump supplies pressurized water for circulation, with a pressure of less than 0.5MPa and a flow rate of approximately 1000ml per minute. |
Output Characteristics Overview
| Normal working voltage/current | 10.2~14.1V / 26A |
| Surface temperature | < 60°C |
| Theoretical water consumption | about 1ml/Min |
| Water consumption Without Hydrogen-water separation | About 70-100ml/Min |
