Introduction

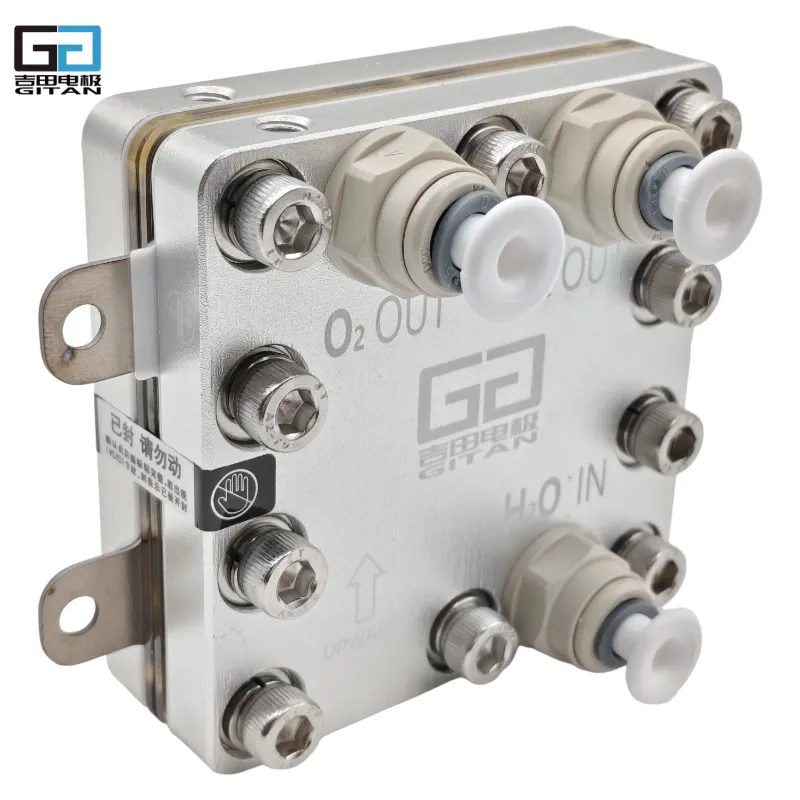

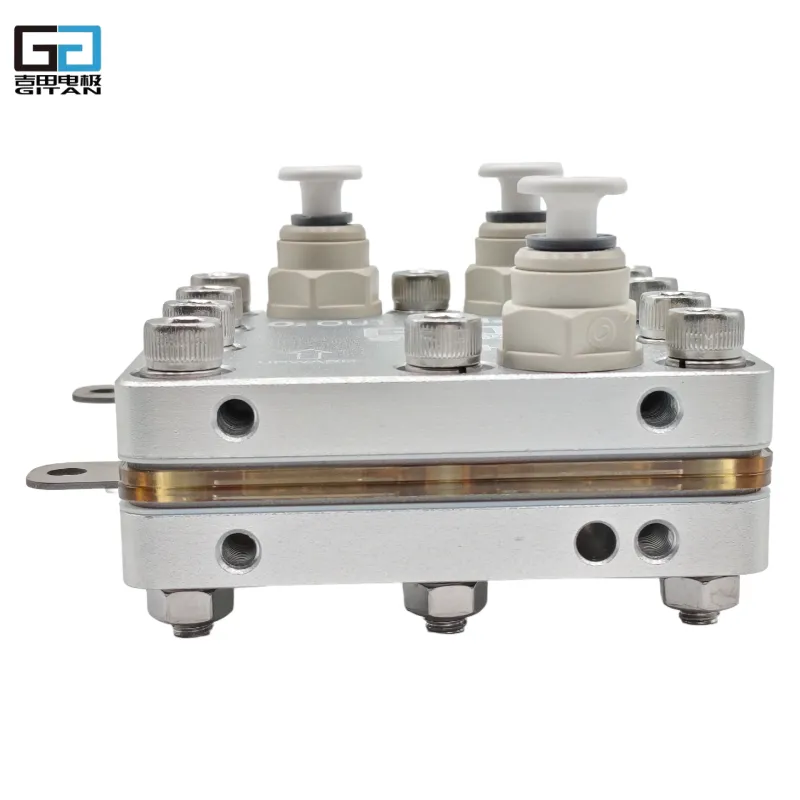

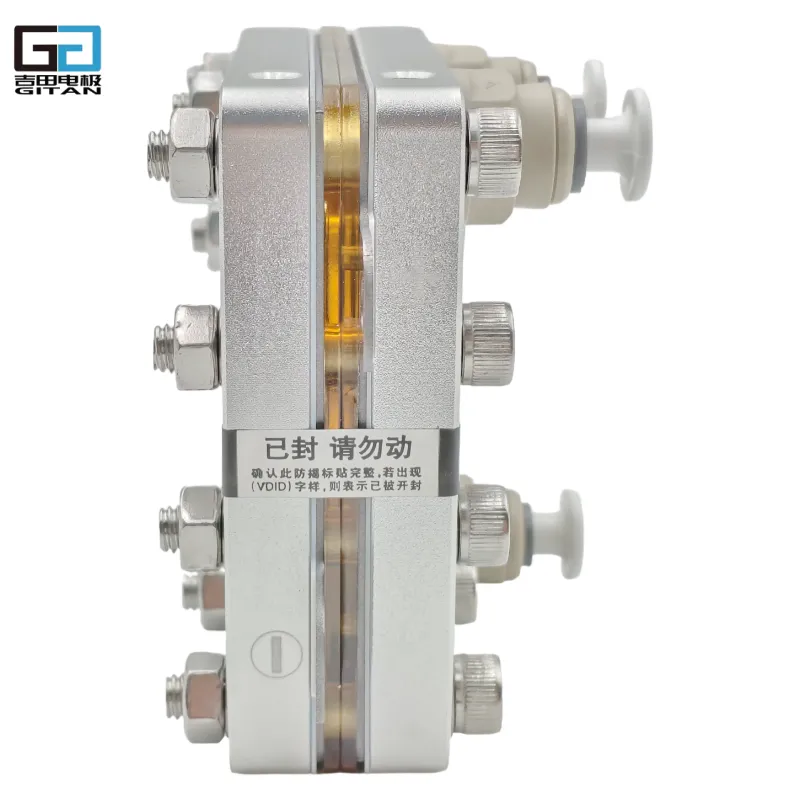

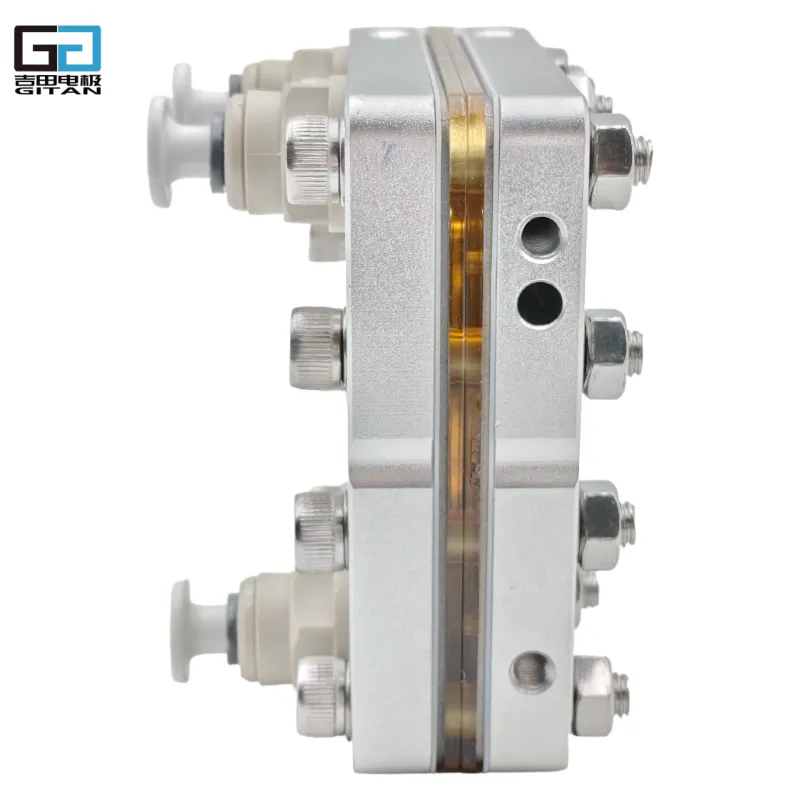

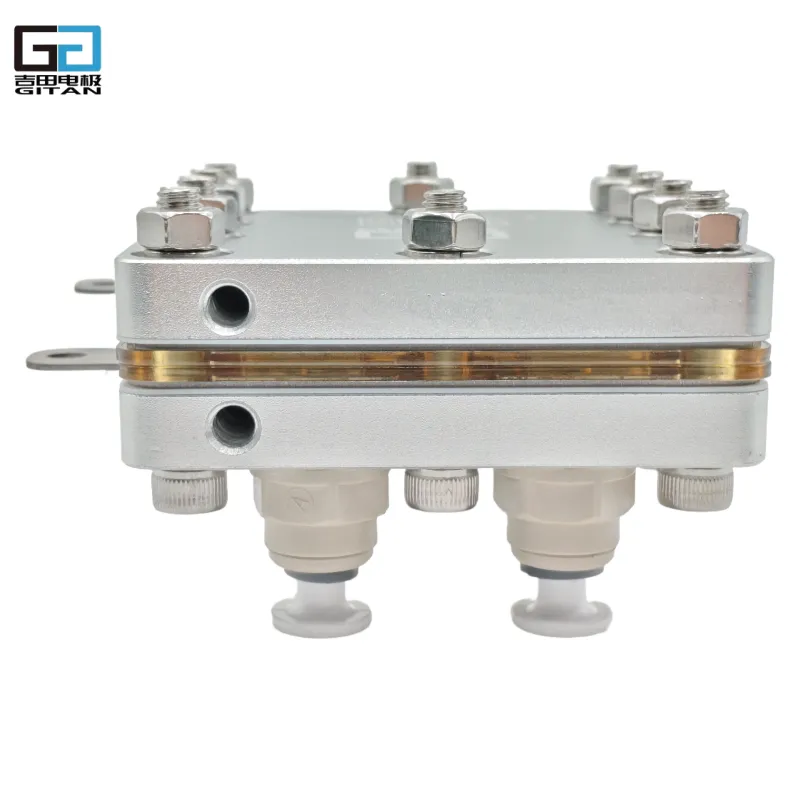

The 150ml A Series Hydrogen and Oxygen Electrolyzer adopts the self-developed chemical deposition (ELD) proton exchange membrane, which has controllable quality, more reliable, low working voltage, compact structure and easy installation. It has a long service life, within 1A/cm², within 5ppm of water quality, 60 minutes of power-on - 30 minutes of power-off, and a continuous operation life of up to 5000h, which can be applied to small hydrogen and oxygen ventilators, household hydrogen water systems and other scenarios.
Share:
Product Parameters
Nominal hydrogen gas production per minute | 150ml/min |
Nominal gases production per minute | H2:150±10ml/min, O2:75±5ml/min. |
Working medium | Purified water(TDS<5PPM) |
Inlet water pressure | ≤0.5MPa (≤72.52psi) |
Overall size L*W*H | 96X51X74mm |
Sizes of mounting holes | M5 * 4pcs |
Sizes of inlet/outlet holes | Φ1/4” quick connector |
Type of power supply | Constant current power |
Rated voltage/current | DC3.5V / 20A |
Acceptable working voltage/current | DC≤36V / ≤22A |
Water supply method | Circulate water supply between that tank and inlet of electrolyzer, water level about 15cm, pressure<0.5MPa |
Need Custom Design and Development for CCM And PEM Electrolyzers?
We strongly support customer personalization and customization, providing the most suitable solutions based on different customer needs. If you have any customization requirements, please contact us and we will provide you with the most professional advice and products.
