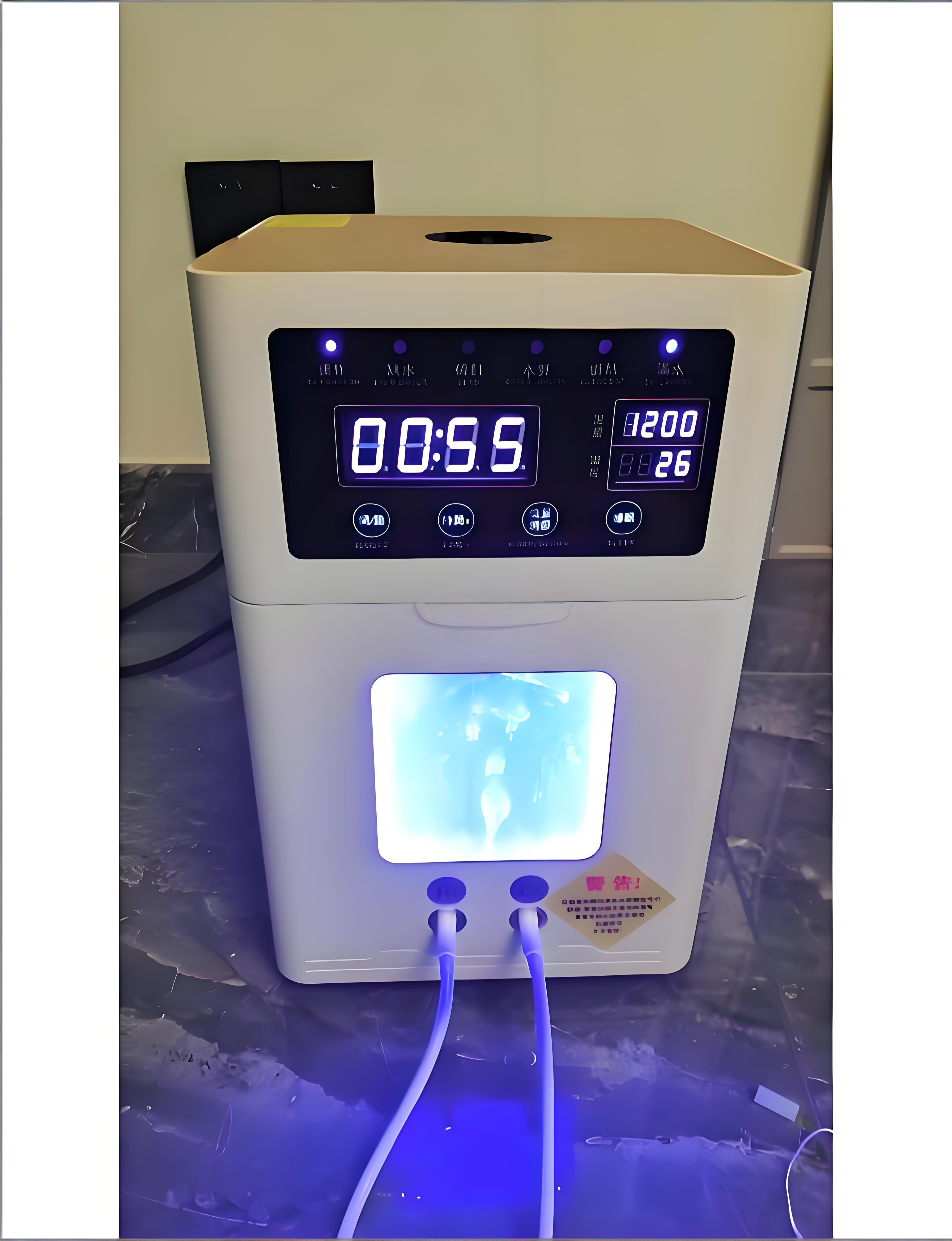

The Convergence of Chemistry and Wellness Medical Hydrogen-Oxygen Generators with PEM Technology

In the evolving landscape of therapeutic medicine and personal wellness, the inhalation of molecular hydrogen has emerged as a significant area of interest. This is facilitated by sophisticated devices known as medical hydrogen-oxygen generators, or "hyrdoxy" inhalers. These machines are designed to produce a precise mixture of hydrogen and oxygen gas for therapeutic use. At the very core of the most advanced and safest of these devices lies a Proton Exchange Membrane (PEM) electrolyser. This remarkable piece of electrochemical engineering is what guarantees the purity and reliability required for medical applications, transforming simple, purified water into a potentially life-enhancing therapeutic gas.

The Engine of Purity: The PEM Electrolyser Explained

To understand the generator, one must first understand its engine. The PEM electrolyser is an electrochemical cell responsible for performing water electrolysis—the process of splitting water (H₂O) into its constituent elements, hydrogen (H₂) and oxygen (O₂), using electricity. Its use in a medical device is a deliberate choice, prized for its ability to produce exceptionally pure gases without the use of corrosive liquid electrolytes.

The heart of the electrolyser is the Membrane Electrode Assembly (MEA). This is a sophisticated sandwich of components:

1. A central Proton Exchange Membrane (PEM), a solid polymer film that is permeable only to protons (positively charged hydrogen ions).

2. An Anode (positive electrode) on one side of the membrane.

3. A Cathode (negative electrode) on the other side.

Both electrodes are coated with a thin layer of a catalyst material. In PEM systems, these are typically precious metals: iridium or ruthenium on the anode and platinum on the cathode.

The process within the medical generator unfolds with precision:

1. Water Input: The journey begins with ultrapure, deionised water. Medical-grade generators contain internal purification systems to ensure that no minerals or contaminants enter the electrolyser, as this is paramount for both the patient's safety and the longevity of the device. This purified water is fed to the anode side of the MEA.

2. The Anode Reaction (Oxygen Generation): When a direct current is applied to the cell, the catalyst on the anode uses this electrical energy to oxidise the water molecules. This reaction splits the water into three products: oxygen gas (O₂), positively charged hydrogen ions (protons, H⁺), and electrons (e⁻).

   The chemical equation at the anode is: 2H₂O → O₂ + 4H⁺ + 4e⁻

3. The Role of the Membrane: This is where the genius of PEM technology shines for medical use. The solid polymer membrane acts as a perfect gatekeeper. It allows the tiny protons (H⁺) to pass through to the cathode but physically blocks the larger oxygen molecules and the electrons. This intrinsic separation is the single most important feature, as it ensures that the hydrogen and oxygen gases are generated in two separate, pure streams, preventing them from mixing within the cell.

4. The Cathode Reaction (Hydrogen Generation): Whilst the protons migrate through the membrane, the electrons are forced to travel through an external electrical circuit to the cathode. Here, the platinum catalyst facilitates the recombination of the arriving protons with these electrons. This reaction forms pure molecular hydrogen (H₂).

   The chemical equation at the cathode is: 4H⁺ + 4e⁻ → 2H₂

The result is the production of an exceptionally pure stream of hydrogen gas from the cathode and an equally pure stream of oxygen gas from the anode. This process avoids the use of alkaline solutions like potassium hydroxide (KOH), which are found in older, less suitable technologies and carry the risk of producing a caustic aerosol.

From Electrolyser to Patient: The Complete System

The PEM electrolyser is the core, but the medical generator integrates it into a complete, user-friendly system. After the gases are produced, they undergo several crucial steps before they are ready for inhalation:

• Gas Mixing: The separate hydrogen and oxygen streams are channelled from the electrolyser and precisely mixed. Most therapeutic protocols call for a mixture of 66.6% hydrogen and 33.3% oxygen, mimicking the 2:1 ratio in which they are produced from water. The machine's electronics carefully control the flow rates to maintain this exact proportion.

• Humidification: The gases produced by electrolysis are dry. To make them safe and comfortable to breathe for extended periods, the mixed gas is bubbled through a humidification chamber filled with distilled water. This adds moisture, preventing the drying out of the user's nasal passages and respiratory tract.

• Delivery: The final, humidified hydrogen-oxygen gas mixture is delivered to the user at a gentle flow rate (typically 1 to 3 litres per minute) via a nasal cannula or a specialised inhalation mask.

• Safety and Control Systems: Medical-grade devices are equipped with a suite of sensors that monitor water levels, gas pressure, temperature, and purity. If any parameter deviates from the safe operating range, the machine will sound an alarm and automatically shut down.

Medical Applications and Therapeutic Rationale

The primary reason for inhaling this gas mixture lies in the unique biological properties of molecular hydrogen. It is considered a selective antioxidant. This means it has been shown to neutralise the most harmful and cytotoxic free radicals in the body (such as the hydroxyl radical, •OH) whilst not interfering with essential free radicals that play important roles in cell signalling and immune function.

Beyond its antioxidant effects, research suggests hydrogen also exhibits anti-inflammatory, anti-apoptotic (preventing cell death), and cell-protective properties. Consequently, hydrogen-oxygen inhalation is being explored as an adjunctive therapy across a wide range of fields:

• Respiratory Conditions: To reduce oxidative stress and inflammation in the lungs.

• Neurological Support: For its potential to protect brain cells from oxidative damage.

• Metabolic Disorders: To help improve metabolic markers.

• Post-Surgical Recovery: To mitigate the oxidative stress associated with surgery and anaesthesia.

• General Wellness and Anti-Ageing: For its broad-spectrum antioxidant effects to combat the daily toll of oxidative stress.

In conclusion, the medical hydrogen-oxygen generator is a testament to the application of advanced electrochemistry in health and wellness. By harnessing the power of a Proton Exchange Membrane electrolyser, it can safely and reliably produce high-purity hydrogen and oxygen from nothing more than water. The inherent safety, purity, and precise control offered by PEM technology make it the gold standard for this application, providing a non-invasive method to deliver the therapeutic potential of molecular hydrogen directly to the body. As research continues to uncover the benefits of hydrogen inhalation, these sophisticated devices are poised to become a common feature in both clinical and home settings.
