Professional Medical Hydrogen Inhalation Device with PEM Electrolyser Technology: A Comprehensive Overview

Introduction

Hydrogen inhalation therapy has emerged as a promising adjunctive treatment modality in contemporary medical practice. This document provides a detailed introduction to our state-of-the-art medical hydrogen inhalation apparatus, which incorporates advanced Proton Exchange Membrane (PEM) electrolyser technology. The device has been meticulously designed and manufactured in full compliance with European Union regulatory frameworks, including the Medical Device Regulation (EU) 2017/745 (MDR) and relevant harmonised standards.

Fundamental Principles of PEM Electrolysis Technology

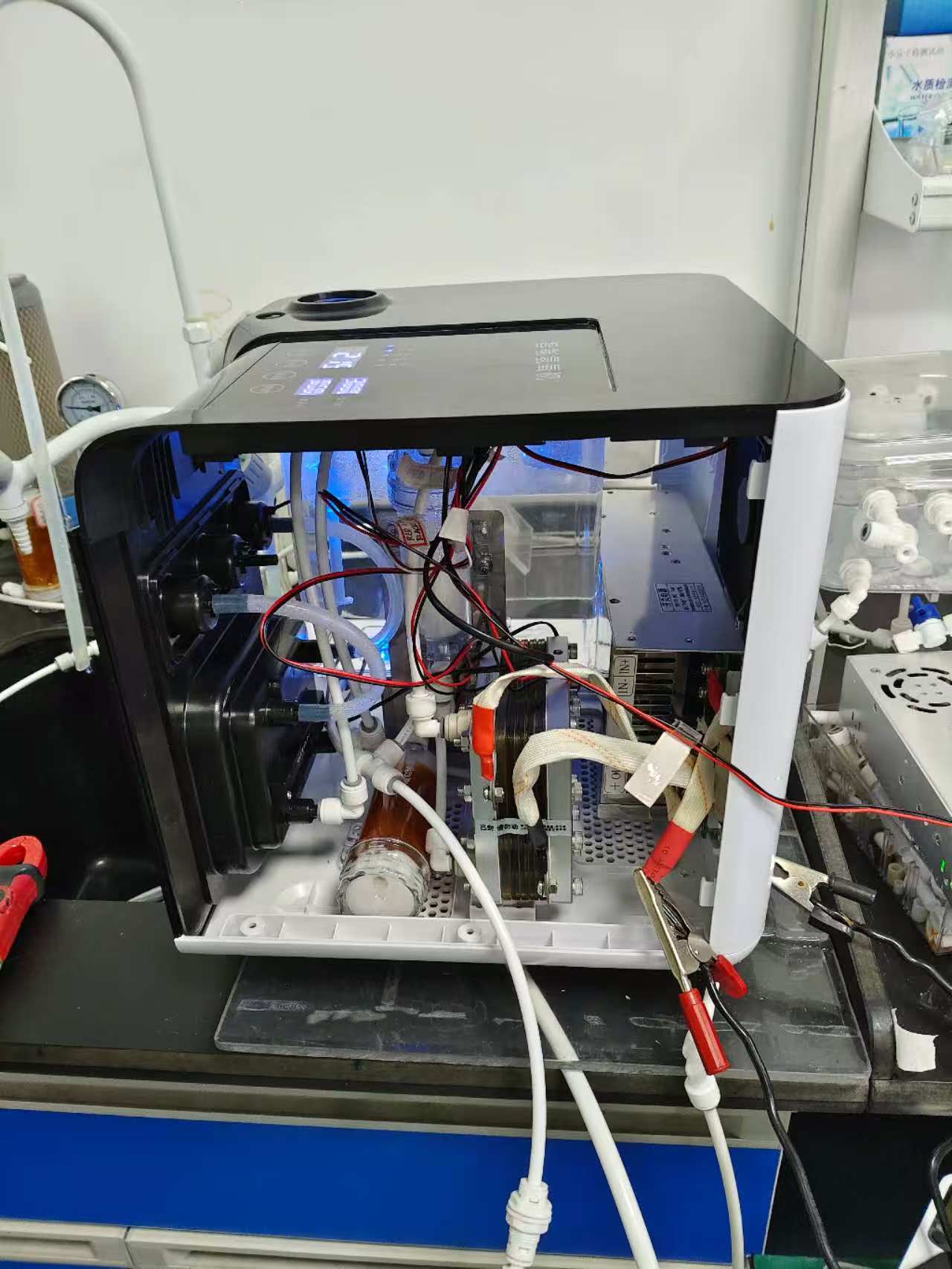

The core of our medical hydrogen inhalation device comprises a sophisticated PEM electrolyser system. Unlike conventional alkaline electrolysis methods, PEM technology utilises a solid polymer electrolyte membrane, typically constructed from perfluorosulfonic acid (PFSA) materials such as Nafion®, to facilitate the electrochemical separation of purified water into hydrogen and oxygen gases.

During operation, deionised water is introduced to the anode side of the membrane, where it undergoes oxidation to produce oxygen, protons, and electrons. The protons subsequently migrate through the proton-conductive membrane to the cathode, where they combine with electrons to generate high-purity molecular hydrogen (H₂). This process occurs at ambient temperature and pressure, ensuring optimal safety and operational efficiency.

The PEM electrolyser configuration offers several distinct advantages for medical applications. Firstly, it produces hydrogen gas with exceptional purity levels, typically exceeding 99.99%, which is paramount for therapeutic inhalation purposes. Secondly, the compact solid-state design eliminates the requirement for corrosive liquid electrolytes, thereby enhancing both safety and reliability. Thirdly, PEM systems demonstrate rapid response characteristics and superior dynamic performance, enabling precise control of hydrogen output flow rates.

Technical Specifications and Performance Parameters

Our medical hydrogen inhalation device incorporates the following technical specifications:

Hydrogen Generation Capacity: The apparatus is capable of producing molecular hydrogen at adjustable flow rates ranging from 100 to 600 millilitres per minute, accommodating diverse therapeutic protocols and patient requirements.

Hydrogen Purity: The device consistently delivers hydrogen gas with purity levels of 99.995% or greater, with residual oxygen content maintained below 5 parts per million (ppm).

Operating Pressure: The system operates at a nominal pressure of 0.1 to 0.3 megapascals (MPa), with integrated pressure relief mechanisms to prevent over-pressurisation.

Water Quality Requirements: The electrolyser requires deionised or distilled water with electrical conductivity below 5 microsiemens per centimetre (μS/cm) to ensure optimal membrane longevity and hydrogen purity.

Power Consumption: Typical power consumption ranges from 120 to 300 watts, depending upon the selected hydrogen output rate.

Operational Lifespan: The PEM membrane stack is engineered to provide a minimum operational lifespan of 5,000 hours under standard operating conditions.

Safety Features and Risk Mitigation

Patient safety constitutes the paramount consideration in the design of our medical hydrogen inhalation device. The apparatus incorporates multiple layers of safety mechanisms in accordance with IEC 60601-1 (Medical Electrical Equipment – General Requirements for Basic Safety and Essential Performance) and IEC 60601-1-2 (Electromagnetic Compatibility).

The integrated safety systems include: real-time hydrogen concentration monitoring with automatic shutdown functionality should ambient hydrogen levels approach 1% volume (substantially below the 4% lower flammability limit); water level sensors to prevent dry operation of the electrolyser; temperature monitoring systems to ensure operation within prescribed thermal parameters; and pressure relief valves to safeguard against over-pressurisation events.

Furthermore, the device features a medical-grade humidification system to condition the hydrogen gas prior to inhalation, preventing respiratory tract irritation and enhancing patient comfort during extended treatment sessions.

European Union Regulatory Compliance

This medical hydrogen inhalation device has been developed in strict accordance with the European Union Medical Device Regulation (EU) 2017/745, which establishes comprehensive requirements for the design, manufacture, and post-market surveillance of medical devices within the European Economic Area.

The device has undergone rigorous conformity assessment procedures, including comprehensive technical documentation review, quality management system evaluation in accordance with ISO 13485:2016, and clinical evaluation as stipulated in MDR Annex XIV. Following successful completion of these assessments by a designated Notified Body, the device has been granted CE marking, signifying its conformity with all applicable EU requirements.

Additionally, the manufacturing facility maintains certification to ISO 13485:2016 (Medical Devices – Quality Management Systems) and implements robust risk management processes in accordance with ISO 14971:2019 (Medical Devices – Application of Risk Management to Medical Devices).

Clinical Applications and Therapeutic Indications

Molecular hydrogen has been investigated extensively for its potential therapeutic properties, including selective antioxidant activity, anti-inflammatory effects, and cytoprotective capabilities. Peer-reviewed scientific literature suggests potential applications in various clinical contexts, including neurological conditions, metabolic disorders, cardiovascular diseases, and recovery from oxidative stress-related conditions.

It should be noted that whilst promising preclinical and clinical evidence exists, hydrogen inhalation therapy should be administered under appropriate medical supervision and in conjunction with established treatment protocols.

Conclusion

Our PEM electrolyser-based medical hydrogen inhalation device represents a sophisticated integration of advanced electrochemical technology with rigorous medical device engineering principles. Through adherence to European regulatory standards and implementation of comprehensive safety measures, the device offers healthcare professionals a reliable and effective means of delivering high-purity hydrogen for therapeutic inhalation applications.
