Introduction

As the global energy transition accelerates, green hydrogen has emerged as a pivotal energy carrier for decarbonising sectors that are inherently difficult to electrify. Among the principal water electrolysis technologies, the Proton Exchange Membrane (PEM) electrolyser has gained considerable traction for industrial-scale deployment owing to its rapid dynamic response, compact footprint, and capacity to produce hydrogen at high purity. Under the European Union's regulatory framework — specifically the Delegated Acts supplementing Directive (EU) 2018/2001 (the Renewable Energy Directive, or RED II) — green hydrogen must be produced exclusively from renewable electricity sources, satisfying stringent additionality, temporal correlation, and geographical correlation criteria. Industrial PEM electrolysis is well positioned to meet these requirements.

Working Principles

A PEM electrolyser operates on the principle of electrochemical water splitting, utilising a solid polymer electrolyte — typically a perfluorosulphonic acid (PFSA) membrane such as Nafion™ — to conduct protons whilst simultaneously serving as a gas separator between the anodic and cathodic half-cells.

At the anode, deionised water is oxidised in the oxygen evolution reaction (OER):

2H₂O → O₂+4H⁺+4e^-

The protons thus generated migrate through the proton exchange membrane under the influence of the applied electric field. Simultaneously, the electrons travel through the external circuit to the cathode. At the cathode, the hydrogen evolution reaction (HER) takes place:

4H⁺+4e^- → 2H₂

The overall cell reaction is:

2H₂O → 2H₂ +O₂

The thermodynamic minimum voltage required for water splitting at standard conditions is 1.23 V (the reversible cell voltage). In practice, industrial PEM cells operate at voltages between 1.8 V and 2.2 V, with the overpotential attributable to activation losses at the electrode catalysts, ohmic resistance across the membrane and interfacial contacts, and mass transport limitations. The anode catalyst is conventionally iridium oxide (IrO₂) or iridium-ruthenium mixed oxides, necessitated by the highly acidic and oxidising anodic environment. The cathode catalyst is typically platinum supported on carbon (Pt/C). Current densities in industrial PEM electrolysers commonly range from 1.0 to 3.0 A/cm², substantially higher than those achievable in alkaline electrolysers, thereby enabling more compact stack designs.

System Composition

An industrial-scale PEM electrolysis system comprises several integrated subsystems:

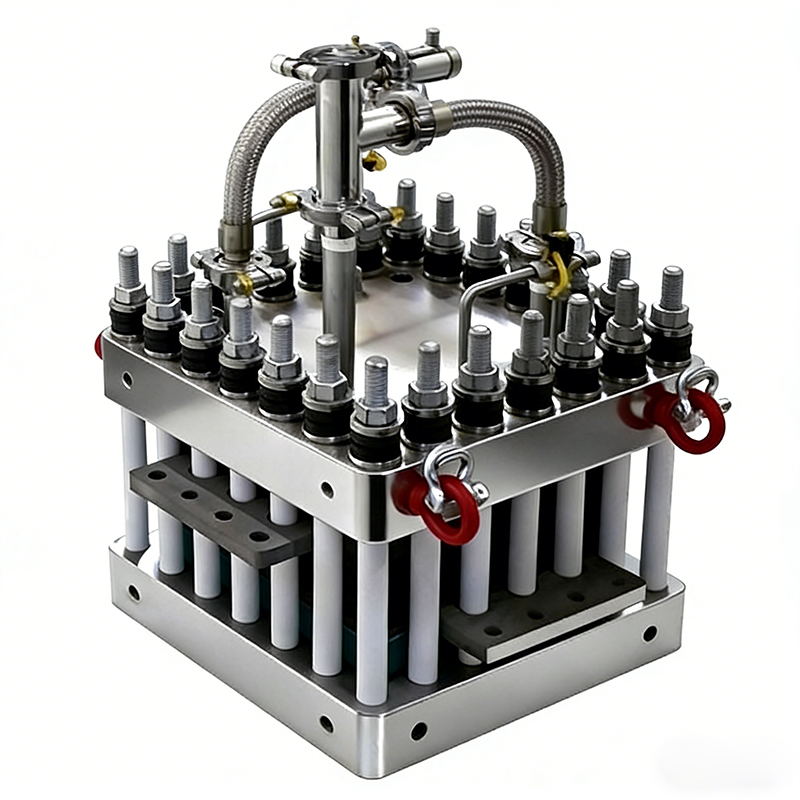

1. Electrolyser Stack
The stack is the core component, consisting of multiple individual cells connected in series in a bipolar configuration. Each cell contains a membrane electrode assembly (MEA) — the catalyst-coated membrane sandwiched between porous transport layers (PTLs), typically sintered titanium on the anode side and carbon-based materials on the cathode side — compressed between bipolar plates. The bipolar plates, usually fabricated from titanium with protective coatings, distribute reactant water, collect current, and channel product gases.

2. Water Purification and Supply System
PEM electrolysers require ultrapure deionised water (resistivity ≥ 18.2 MΩ·cm) to prevent membrane degradation and catalyst poisoning. The water treatment train typically comprises reverse osmosis, electrodeionisation, and mixed-bed ion exchange polishing stages.

3. Power Supply and Rectification
An AC/DC rectifier converts grid or renewable alternating current into the direct current required by the stack. Modern power electronics enable rapid load-following capability, allowing the electrolyser to respond to fluctuating renewable energy inputs within milliseconds to seconds.

4. Gas Processing and Purification
The hydrogen produced exits the stack saturated with water vapour. A gas-liquid separator, followed by a desiccant dryer or pressure swing adsorption (PSA) unit, removes residual moisture and trace oxygen to achieve hydrogen purities exceeding 99.999% (5.0 grade).

5. Thermal Management System
Waste heat generated within the stack must be dissipated to maintain optimal operating temperatures (typically 50–80 °C). Heat exchangers and cooling circuits regulate the stack temperature, and recovered thermal energy may be utilised for ancillary processes.

6. Control and Safety Systems
A programmable logic controller (PLC) or distributed control system (DCS) governs all operational parameters, including voltage, current, temperature, pressure, and gas purity. Safety instrumentation monitors for hydrogen leaks, over-pressure conditions, and membrane integrity.

Applications

Industrial PEM electrolysers are deployed across a broad spectrum of applications aligned with the EU's green hydrogen objectives:

·            Industrial Feedstock Decarbonisation: Replacing grey hydrogen in ammonia synthesis, petroleum refining, and methanol production.

·            Energy Storage and Sector Coupling: Converting surplus renewable electricity into hydrogen for subsequent reconversion via fuel cells or gas turbines, thereby providing long-duration energy storage.

·            Sustainable Mobility: Supplying green hydrogen to fuel cell electric vehicles (FCEVs), particularly in heavy-duty transport, maritime, and aviation sectors.

·            Power-to-X Pathways: Producing synthetic fuels (e-fuels) and green chemicals through catalytic combination of green hydrogen with captured carbon dioxide.

Conclusion

Industrial PEM electrolysis represents a technologically mature and strategically vital pathway for the production of green hydrogen in compliance with EU regulatory standards. Continued advancements in catalyst loading reduction, membrane durability, and system integration are expected to drive further cost reductions and efficiency improvements, consolidating PEM technology's role in achieving climate neutrality by 2050.
