Hydrogen-Rich Water Generator with PEM Electrolysis Technology: A Comprehensive Technical Overview

Introduction

Hydrogen-rich water has emerged as a significant focus in health and wellness research over recent decades, with numerous studies investigating its potential antioxidant properties and biological effects. At the heart of modern hydrogen water generation systems lies the Proton Exchange Membrane (PEM) electrolysis technology, which represents a substantial advancement over conventional electrolysis methods. This technical document provides an in-depth examination of hydrogen-rich water generators equipped with PEM electrolysis cells, elucidating the fundamental operating principles, technological advantages, and compliance with European Union regulatory frameworks.

Fundamental Principles of PEM Electrolysis

The Proton Exchange Membrane electrolysis cell constitutes the core technology enabling efficient hydrogen production in contemporary water enrichment systems. Unlike traditional alkaline electrolysis, which requires liquid electrolytes and operates under specific pH conditions, PEM electrolysis employs a solid polymer membrane that serves simultaneously as electrolyte and gas separator, offering superior performance characteristics and operational flexibility.

The electrochemical process within a PEM cell involves water decomposition through the application of direct current electrical energy. When purified water contacts the anode surface, oxidation occurs, splitting water molecules into oxygen gas, hydrogen ions (protons), and electrons. The chemical reaction at the anode follows the equation: 2H₂O → O₂ + 4H⁺ + 4e⁻. The proton exchange membrane, typically composed of perfluorosulphonic acid polymer materials such as Nafion, possesses exceptional proton conductivity whilst remaining impermeable to gases and electrons. This selective permeability ensures that only hydrogen ions traverse the membrane from anode to cathode.

At the cathode surface, hydrogen ions recombine with electrons that have travelled through the external circuit, forming molecular hydrogen gas according to the reaction: 4H⁺ + 4e⁻ → 2H₂. The overall electrolysis reaction therefore accomplishes the decomposition of water into its constituent elements: 2H₂O → 2H₂ + O₂. The hydrogen gas generated at the cathode immediately dissolves into the surrounding water, creating hydrogen-rich water with elevated dissolved hydrogen concentrations, typically ranging from 800 to 1600 parts per billion, depending on operating parameters and system design.

Structural Components and Operational Mechanisms

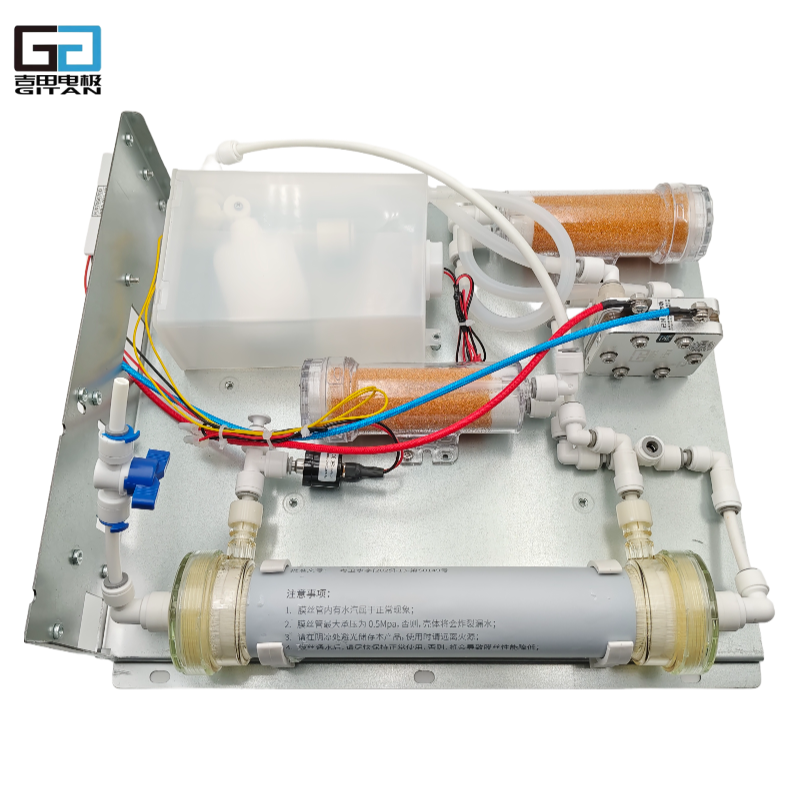

A sophisticated PEM electrolysis hydrogen water generator comprises several critical components working in precise coordination. The membrane electrode assembly (MEA) forms the functional heart of the system, consisting of the proton exchange membrane sandwiched between two catalyst-coated electrode layers. The anode typically employs iridium oxide or mixed metal oxide catalysts to facilitate oxygen evolution, whilst the cathode utilises platinum-based catalysts to promote hydrogen evolution reactions.

The bipolar plates, manufactured from titanium alloys or coated stainless steel, serve multiple essential functions: distributing water uniformly across the electrode surfaces, collecting generated gases, conducting electrical current, and managing thermal conditions. These plates feature precisely engineered flow channels that optimise reactant distribution and product removal whilst minimising ohmic losses.

Power supply systems provide controlled direct current at appropriate voltage levels, typically between 1.8 and 2.2 volts per cell under normal operating conditions. Advanced generators incorporate intelligent power management systems that adjust current density based on water quality, temperature, and desired hydrogen concentration, ensuring optimal performance whilst preventing membrane degradation.

Water circulation and filtration systems maintain water purity, removing dissolved minerals, chlorine, and organic contaminants that could compromise membrane performance or introduce unwanted substances into the hydrogen-enriched water. Multi-stage filtration typically includes activated carbon filters, ion exchange resins, and microfiltration membranes to achieve the requisite water quality.

Technical Advantages of PEM Technology

PEM electrolysis technology offers numerous substantive advantages over conventional electrolysis methods, making it particularly suitable for hydrogen water generation applications. The compact design enabled by solid-state electrolyte technology allows manufacturers to produce portable and countertop devices with significantly reduced footprints compared to alkaline electrolysis systems requiring large electrolyte reservoirs.

The rapid response characteristics of PEM cells facilitate instantaneous hydrogen production upon activation, without requiring lengthy warm-up periods or continuous operation to maintain electrolyte temperature and composition. This operational flexibility enables on-demand hydrogen water generation aligned with consumption patterns, enhancing convenience whilst reducing energy consumption.

The high current density capability of PEM electrolysis, frequently exceeding 2 amperes per square centimetre, enables rapid hydrogen production from relatively small electrode areas. This characteristic translates to shorter processing times and higher volumetric productivity compared to traditional methods operating at substantially lower current densities.

Purity represents another critical advantage: PEM electrolysis produces hydrogen gas with exceptional purity levels, typically exceeding 99.99 per cent, without contamination from electrolyte chemicals. The solid membrane eliminates electrolyte carryover issues inherent in liquid electrolyte systems, ensuring that the hydrogen-enriched water contains no alkaline additives or potentially harmful substances.

Furthermore, PEM systems demonstrate excellent partial load performance and can operate efficiently across wide power ranges, accommodating variable electricity supply conditions and enabling integration with renewable energy sources where applicable.

Compliance with European Union Requirements

Hydrogen-rich water generators incorporating PEM electrolysis technology must satisfy comprehensive European Union regulatory requirements addressing safety, electromagnetic compatibility, material safety, and environmental considerations. Compliance with these stringent standards ensures consumer protection and environmental responsibility throughout the product lifecycle.

The Low Voltage Directive (LVD) 2014/35/EU establishes essential safety requirements for electrical equipment operating between specified voltage limits. PEM hydrogen water generators must incorporate appropriate protective measures including electrical isolation, overcurrent protection, earth leakage protection, and insulation systems meeting relevant harmonised standards such as EN 60335 series for household and similar electrical appliances.

The Electromagnetic Compatibility (EMC) Directive 2014/30/EU mandates that equipment neither generates excessive electromagnetic interference affecting other devices nor proves susceptible to electromagnetic disturbances from external sources. Compliance verification through testing according to EN 55014 and EN 61000 series standards ensures electromagnetic compatibility in residential and commercial environments.

The Restriction of Hazardous Substances (RoHS) Directive 2011/65/EU limits concentrations of specific hazardous materials including lead, mercury, cadmium, hexavalent chromium, and certain brominated flame retardants in electrical and electronic equipment. PEM water generators must utilise RoHS-compliant materials and components, with particular attention to catalyst materials, electronic assemblies, and housing components.
