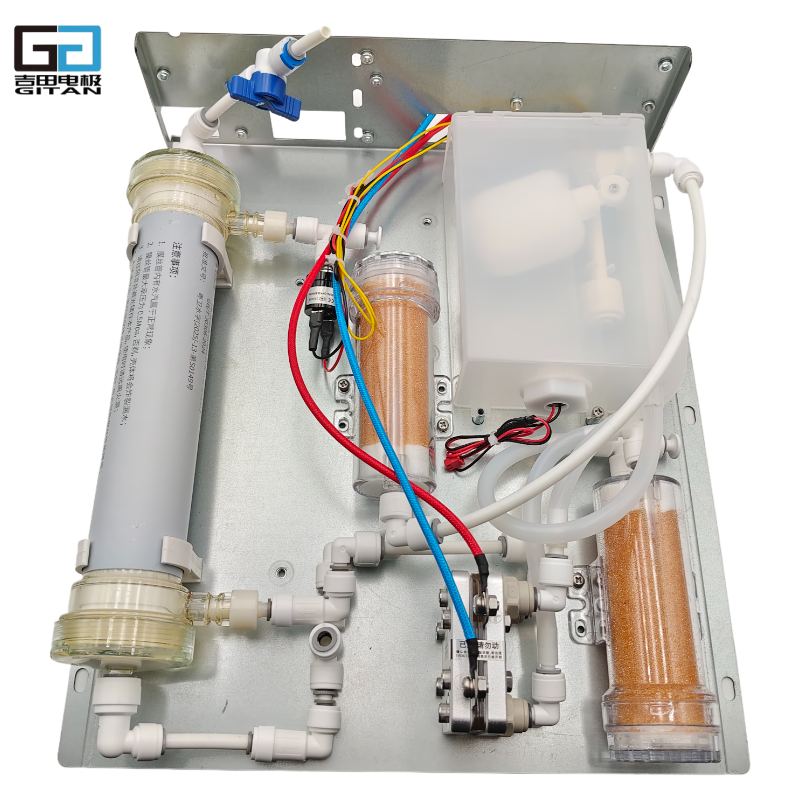

Hydrogen-Rich Water Dispenser with PEM Electrolyser Technology Technical Overview and Future Prospects

Hydrogen-Rich Water Dispenser with PEM Electrolyser Technology Technical Overview and Future Prospects

Introduction

Hydrogen-rich water has garnered considerable scientific interest in recent years owing to its potential antioxidant properties and health-promoting characteristics. This document presents a comprehensive introduction to our advanced hydrogen-rich water dispenser, which employs cutting-edge Proton Exchange Membrane (PEM) electrolyser technology to generate dissolved molecular hydrogen in potable water. The apparatus has been engineered and manufactured in full compliance with applicable European Union regulations governing drinking water appliances and food contact materials.

Fundamental Working Principles of PEM Electrolyser Technology

The Proton Exchange Membrane electrolyser represents the technological cornerstone of our hydrogen-rich water dispenser. Understanding its operational mechanisms is essential for appreciating the sophistication and efficacy of this system.

Electrochemical Process Overview

PEM electrolysis is an electrochemical process that dissociates purified water molecules into their constituent elements—hydrogen and oxygen—through the application of direct electrical current. The defining characteristic of PEM technology lies in its utilisation of a solid polymer electrolyte membrane, typically fabricated from perfluorosulfonic acid (PFSA) polymers such as Nafion®, which serves simultaneously as the electrolyte, gas separator, and proton conductor.

Detailed Reaction Mechanisms

At the anode (positive electrode), water molecules undergo oxidation according to the following half-reaction:

2H₂O → O₂ + 4H⁺ + 4e⁻

This reaction liberates oxygen gas, protons (hydrogen ions), and electrons. The protons subsequently migrate through the proton-conductive membrane towards the cathode, whilst the electrons travel through an external electrical circuit.

At the cathode (negative electrode), the reduction half-reaction occurs:

4H⁺ + 4e⁻ → 2H₂

Here, the protons recombine with electrons to form molecular hydrogen gas. In our hydrogen-rich water dispenser, this high-purity hydrogen is subsequently dissolved into the drinking water through an advanced micro-nano bubble diffusion system, creating hydrogen-rich water with optimal dissolved hydrogen concentrations.

Advantages of PEM Technology in Water Treatment Applications

PEM electrolysers offer numerous advantages over alternative electrolysis technologies for hydrogen-rich water production. The solid polymer membrane eliminates the requirement for liquid electrolytes, thereby preventing any possibility of chemical contamination of the drinking water. Furthermore, PEM systems operate efficiently at ambient temperatures and low pressures, enhancing both safety and energy efficiency. The technology also demonstrates exceptional hydrogen purity levels, typically exceeding 99.99%, which is paramount for consumption applications.

Technical Specifications

Our hydrogen-rich water dispenser incorporates the following performance parameters:

Dissolved Hydrogen Concentration: The apparatus produces hydrogen-rich water with dissolved hydrogen concentrations ranging from 1,000 to 1,600 parts per billion (ppb), substantially exceeding the therapeutic threshold identified in scientific literature.

Water Treatment Capacity: The dispenser is capable of processing up to 2 litres of hydrogen-rich water per cycle, with a complete hydrogenation cycle requiring approximately 5 to 10 minutes.

Oxidation-Reduction Potential (ORP): The treated water exhibits negative ORP values typically ranging from -300 to -600 millivolts (mV), indicating enhanced reducing properties.

Electrolyser Lifespan: The PEM membrane stack is engineered to provide a minimum operational lifespan of 3,000 hours under standard operating conditions.

Power Requirements: The device operates on standard mains electricity (220-240V AC, 50Hz) with typical power consumption of 60 to 100 watts during the electrolysis cycle.

European Union Regulatory Compliance

This hydrogen-rich water dispenser has been designed and manufactured in strict accordance with all applicable European Union regulations and harmonised standards.

Food Contact Materials Regulation: The apparatus complies fully with Regulation (EC) No 1935/2004 on materials and articles intended to come into contact with food, ensuring that all components in contact with drinking water are safe and do not transfer harmful substances.

Drinking Water Directive: The device conforms to Directive (EU) 2020/2184 on the quality of water intended for human consumption, ensuring that treated water meets all prescribed safety parameters.

Electrical Safety: The apparatus satisfies the requirements of the Low Voltage Directive 2014/35/EU and has been tested in accordance with EN 60335-1 (Household and similar electrical appliances – Safety) and relevant particular standards.

Electromagnetic Compatibility: Compliance with Directive 2014/30/EU (EMC Directive) has been verified through testing to EN 55014-1 and EN 55014-2 standards.

Environmental Compliance: The device meets the requirements of Directive 2011/65/EU (RoHS) regarding the restriction of hazardous substances and Regulation (EC) No 1907/2006 (REACH) concerning chemical safety.

The product bears the CE marking, signifying conformity with all applicable EU requirements.

Development Prospects and Future Trends

The PEM electrolyser technology sector is experiencing rapid advancement, with significant implications for hydrogen-rich water applications.

Technological Advancements

Current research endeavours are focused upon reducing the platinum group metal (PGM) catalyst loading in PEM electrolyser electrodes, thereby decreasing manufacturing costs whilst maintaining performance. Novel membrane materials, including hydrocarbon-based alternatives to PFSA membranes, are under development to enhance durability and reduce environmental impact. Additionally, advances in electrode fabrication techniques, such as atomic layer deposition and nanostructured catalyst supports, promise improved efficiency and longevity.

Market Growth Projections

The global hydrogen economy is expanding rapidly, driven by decarbonisation initiatives and increasing recognition of hydrogen's versatility as an energy carrier. This broader market expansion is catalysing investment in PEM technology research and manufacturing capacity, resulting in economies of scale that benefit consumer applications such as hydrogen-rich water dispensers.

Integration with Smart Home Systems

Future iterations of hydrogen-rich water dispensers are anticipated to incorporate Internet of Things (IoT) connectivity, enabling remote monitoring of electrolyser performance, predictive maintenance scheduling, and integration with smart home ecosystems.

Sustainability Considerations

As environmental consciousness intensifies, the development of more sustainable PEM electrolyser components—including recyclable membranes and reduced precious metal content—will become increasingly important, aligning with circular economy principles.

Safety Features

The dispenser incorporates comprehensive safety mechanisms, including automatic shutdown upon detection of abnormal operating conditions, food-grade materials throughout the water pathway, and electrical isolation systems to prevent any possibility of current leakage into the water supply.

Conclusion

Our PEM electrolyser-based hydrogen-rich water dispenser represents a sophisticated synthesis of advanced electrochemical technology with rigorous food safety and electrical safety engineering. The continued advancement of PEM technology promises further improvements in efficiency, durability, and affordability, positioning hydrogen-rich water dispensers as increasingly accessible consumer health appliances within the European market.
