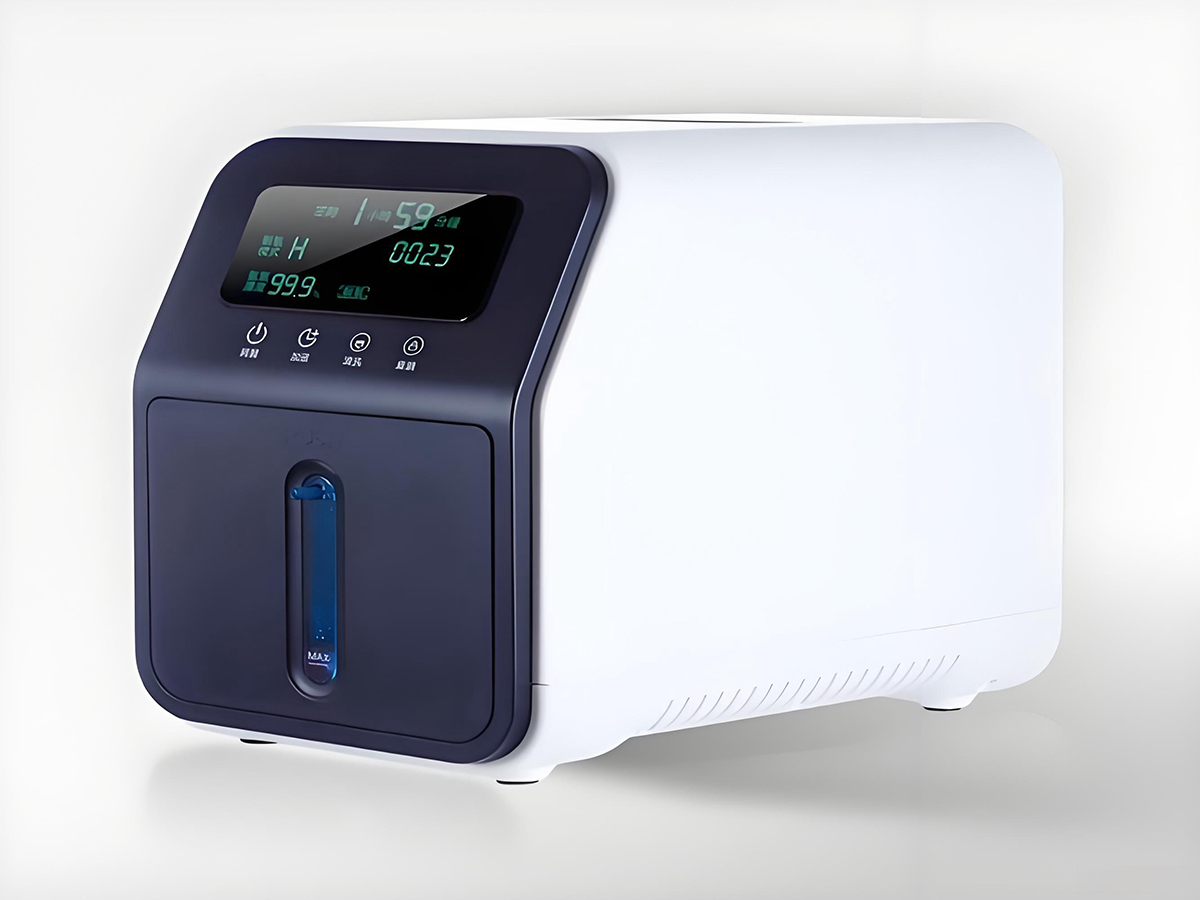

Hydrogen Inhalation Device with PEM Electrolysis Technology: A Technical Analysis

Introduction

Hydrogen inhalation therapy has gained considerable attention within scientific and medical communities as researchers investigate its potential therapeutic applications. The development of sophisticated hydrogen inhalation devices incorporating Proton Exchange Membrane (PEM) electrolysis technology represents a significant advancement in delivering controlled quantities of molecular hydrogen for respiratory administration. This technical document examines the fundamental principles, operational mechanisms, and regulatory compliance of PEM-based hydrogen inhalation systems designed for therapeutic and wellness applications.

PEM Electrolysis: Core Technology and Operating Principles

The Proton Exchange Membrane electrolysis cell constitutes the technological foundation of contemporary hydrogen inhalation devices, enabling efficient, safe, and reliable hydrogen gas production from purified water. Unlike conventional alkaline electrolysis systems requiring liquid caustic electrolytes, PEM technology employs a solid polymer membrane serving dual functions as proton conductor and gas separator, thereby eliminating contamination risks and simplifying system architecture.

The electrochemical process commences when deionised water contacts the anode electrode surface, where oxidation reactions split water molecules into oxygen gas, hydrogen ions (protons), and electrons according to the reaction: 2H₂O → O₂ + 4H⁺ + 4e⁻. The proton exchange membrane, typically fabricated from perfluorosulphonic acid polymers such as Nafion or similar materials, exhibits exceptional selectivity, permitting proton migration whilst blocking electron flow and gas crossover.

Hydrogen ions traverse the membrane under the influence of electrochemical potential gradients, reaching the cathode compartment where reduction reactions occur. At the cathode surface, protons combine with electrons that have travelled through the external electrical circuit, forming molecular hydrogen gas: 4H⁺ + 4e⁻ → 2H₂. The overall electrolysis reaction therefore achieves water decomposition: 2H₂O → 2H₂ + O₂, producing high-purity hydrogen suitable for inhalation applications.

System Architecture and Functional Components

A sophisticated hydrogen inhalation device integrating PEM electrolysis technology comprises several interconnected subsystems engineered for safety, reliability, and precise hydrogen delivery. The membrane electrode assembly (MEA) forms the electrochemical heart, consisting of the proton exchange membrane coated with catalyst layers on both surfaces. Platinum-group metals catalyse the cathode hydrogen evolution reaction, whilst iridium oxide or ruthenium oxide catalysts facilitate anode oxygen evolution.

Bipolar plates manufactured from corrosion-resistant titanium or specially treated stainless steel distribute water to electrode surfaces, collect generated gases, conduct electrical current, and manage thermal conditions. Precision-engineered flow channels within these plates optimise reactant distribution whilst minimising pressure drops and concentration polarisation effects.

The power supply system provides regulated direct current, typically operating at voltages between 1.8 and 2.4 volts per cell depending on current density and operating conditions. Advanced devices incorporate microprocessor-controlled power management systems that modulate current delivery based on temperature feedback, flow rate requirements, and operational duration protocols.

Gas management subsystems separate hydrogen from residual water vapour, regulate delivery pressure, control flow rates precisely through mass flow controllers or calibrated restrictors, and incorporate multiple safety features including pressure relief valves, flame arrestors, and gas purity sensors. Many sophisticated systems blend generated hydrogen with ambient air or medical-grade oxygen to achieve specific hydrogen concentrations, typically ranging from 1 to 4 per cent for safety considerations related to combustibility limits.

Water purification and circulation systems maintain the deionised water quality essential for optimal PEM performance and longevity. Multi-stage filtration removes minerals, organics, and particulates that could compromise membrane conductivity or foul electrode surfaces.

Technical Advantages for Inhalation Applications

PEM electrolysis technology offers compelling advantages for hydrogen inhalation devices. The exceptionally high purity of generated hydrogen, routinely exceeding 99.99 per cent without chemical contaminants, ensures suitability for respiratory administration without introducing potentially harmful substances. The solid-state membrane eliminates any possibility of alkaline electrolyte carryover that could endanger users.

Instantaneous response characteristics enable on-demand hydrogen production without lengthy warm-up periods, allowing users to commence inhalation sessions immediately upon device activation. This operational flexibility enhances user convenience whilst minimising unnecessary energy consumption during idle periods.

The compact design facilitated by high current density operation and solid electrolyte technology enables manufacturers to produce portable and desktop units suitable for home, clinical, or wellness facility deployment. Miniaturisation of PEM stacks without compromising hydrogen production capacity represents a substantial advantage over bulkier conventional technologies.

Furthermore, PEM systems demonstrate excellent operational stability across extended periods, maintaining consistent hydrogen output without the electrolyte degradation and maintenance requirements characteristic of liquid electrolyte systems. This reliability proves essential for therapeutic applications demanding reproducible dosing.

European Union Regulatory Compliance

Hydrogen inhalation devices incorporating PEM electrolysis technology marketed within the European Union must satisfy comprehensive regulatory requirements addressing electrical safety, electromagnetic compatibility, medical device classification where applicable, and environmental considerations.

The Low Voltage Directive (LVD) 2014/35/EU establishes fundamental safety requirements for electrical equipment. Compliance necessitates incorporation of protective measures including electrical isolation, overcurrent protection, earth fault protection, and adequate insulation systems conforming to harmonised standards such as EN 60601 series for medical electrical equipment or EN 60335 for household appliances, depending upon intended use classification.

The Electromagnetic Compatibility (EMC) Directive 2014/30/EU mandates that devices neither generate excessive electromagnetic interference affecting other equipment nor prove susceptible to external electromagnetic disturbances. Testing according to appropriate EN standards verifies compliance and ensures reliable operation in diverse electromagnetic environments.

Devices intended for medical purposes fall under the Medical Devices Regulation (EU) 2017/745, requiring conformity assessment procedures, clinical evaluation, quality management systems compliant with EN ISO 13485, post-market surveillance, and CE marking. Classification depends upon intended purpose, duration of contact, and invasiveness, with hydrogen inhalation devices typically classified as Class IIa or IIb medical devices requiring rigorous assessment procedures.

The Restriction of Hazardous Substances (RoHS) Directive 2011/65/EU limits hazardous materials in electrical components, whilst the REACH Regulation EC 1907/2006 governs chemical substances, requiring registration and safety assessment of membrane materials, catalysts, and all chemical constituents.

Environmental directives including WEEE 2012/19/EU mandate appropriate end-of-life management, requiring manufacturers to establish collection and recycling programmes facilitating responsible disposal and material recovery.

Operational Parameters and Safety Considerations

Proper operation of PEM hydrogen inhalation devices requires attention to several critical parameters. Hydrogen flow rates typically range from 100 to 600 millilitres per minute, adjusted according to therapeutic protocols and user requirements. Precise flow control ensures consistent dosing and prevents excessive hydrogen delivery.

Safety systems incorporate multiple redundant protective features addressing hydrogen's combustibility. Hydrogen concentrations in breathing gas mixtures are maintained well below the lower explosive limit of 4 per cent in air, typically between 1 and 3 per cent for maximum safety margins. Ventilation requirements, flame arrestors, and combustible gas sensors provide additional protective layers.

Regular maintenance including water quality monitoring, filter replacement, and periodic system verification sustains optimal performance and safety throughout the operational lifespan.

Conclusion

Proton Exchange Membrane electrolysis technology provides an advanced, efficient, and safe foundation for hydrogen inhalation devices, offering high-purity gas generation, compact design, and operational reliability essential for therapeutic applications. Compliance with stringent European Union regulatory frameworks ensures these sophisticated devices meet rigorous safety, performance, and environmental standards, providing assurance to users and healthcare professionals regarding quality and safety. As research continues exploring hydrogen's therapeutic potential, PEM-based inhalation systems represent the convergence of electrochemical engineering and regulatory compliance, delivering controlled hydrogen administration meeting the highest technical standards.
