Alkaline Water Ioniser with Electrolysis Technology: A Comprehensive Technical Document

Introduction

Alkaline water ionisers have become increasingly prominent in health and wellness sectors, with consumers seeking water exhibiting elevated pH levels and altered oxidation-reduction potential characteristics. These sophisticated devices employ electrolysis technology to modify water chemistry, producing alkaline ionised water for drinking purposes whilst simultaneously generating acidic water for alternative applications. This technical document provides an in-depth examination of alkaline water ionisers incorporating electrolysis chambers, elucidating the fundamental operating principles, technological mechanisms, and compliance with European Union regulatory frameworks governing such equipment.

Fundamental Principles of Alkaline Water Ionisation

The alkaline water ionisation process relies upon electrolysis, an electrochemical phenomenon whereby electrical current drives non-spontaneous chemical reactions, separating dissolved ionic species and modifying water's chemical properties. Unlike PEM electrolysis systems designed primarily for gas generation, alkaline water ionisers focus on separating dissolved minerals already present in source water, redistributing them to create distinct alkaline and acidic water streams.

When source water containing dissolved minerals flows through the electrolysis chamber and encounters electrode surfaces energised by direct current, electrochemical reactions occur at both anode and cathode. At the cathode (negative electrode), reduction reactions predominate, with water molecules gaining electrons to form hydrogen gas and hydroxide ions according to the reaction: 2H₂O + 2e⁻ → H₂ + 2OH⁻. The generation of hydroxide ions elevates the pH in the cathodic compartment, creating alkaline water.

Simultaneously, at the anode (positive electrode), oxidation reactions occur as water molecules lose electrons, forming oxygen gas and hydrogen ions: 2H₂O → O₂ + 4H⁺ + 4e⁻. The accumulation of hydrogen ions reduces pH in the anodic compartment, producing acidic water. A semi-permeable membrane or physical separator dividing the electrolysis chamber prevents immediate mixing of alkaline and acidic streams whilst permitting selective ion migration.

Dissolved mineral ions present in source water migrate under the influence of the electrical field. Positively charged cations including calcium, magnesium, potassium, and sodium move towards the cathode, concentrating in the alkaline water stream and contributing to increased mineral content alongside elevated pH. Negatively charged anions such as chloride, sulphate, and nitrate migrate towards the anode, accumulating in the acidic water stream.

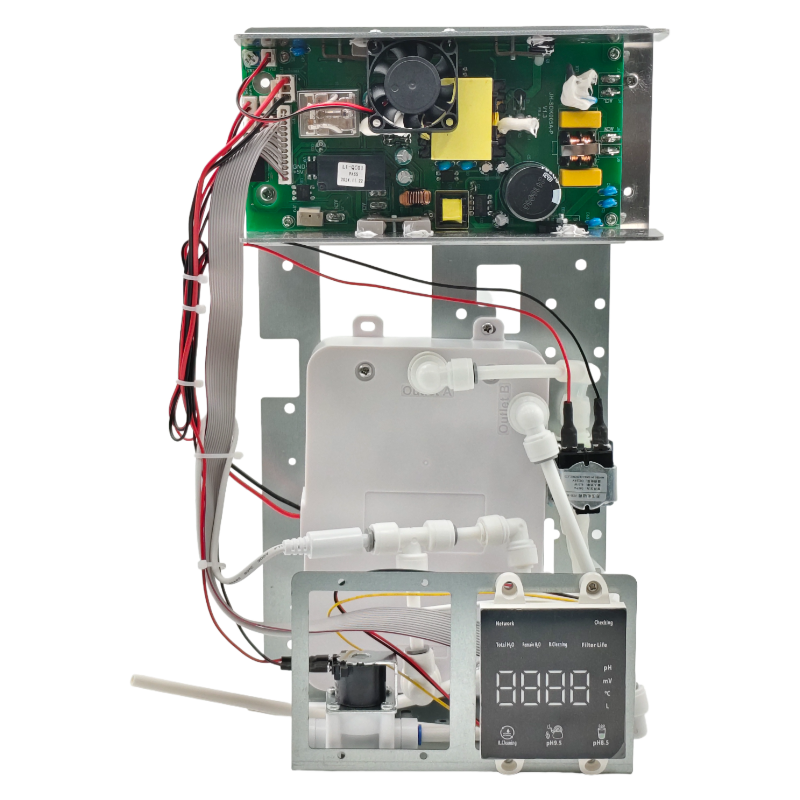

System Architecture and Operational Components

A comprehensive alkaline water ioniser comprises several integrated subsystems engineered to deliver consistent water ionisation whilst ensuring operational reliability and user safety. The electrolysis chamber constitutes the functional core, typically featuring multiple electrode plates manufactured from titanium coated with platinum or other precious metal catalysts. Titanium provides excellent corrosion resistance in aqueous environments, whilst platinum coatings enhance electrochemical activity and durability.

Multi-plate configurations, commonly employing three to eleven electrode plates arranged in alternating polarity, increase the effective electrode surface area, thereby enhancing ionisation efficiency and water processing capacity. Larger electrode areas enable higher flow rates whilst maintaining sufficient contact time for effective electrolysis.

The ion-selective membrane or separator, positioned between alternating electrode plates, performs the critical function of maintaining separation between alkaline and acidic water streams whilst permitting ion migration necessary for the electrolysis process. These membranes typically comprise ion-exchange materials exhibiting selective permeability to specific ionic species.

Power supply systems deliver regulated direct current to electrode plates, with voltage and current parameters adjustable to control ionisation intensity and resultant water pH levels. Advanced ionisers incorporate microprocessor-controlled power management systems allowing users to select desired alkalinity levels, typically offering multiple pH settings ranging from mildly alkaline (pH 8-9) to strongly alkaline (pH 10-11).

Filtration systems preceding the electrolysis chamber remove chlorine, organic contaminants, sediment, and particulates that could interfere with electrolysis efficiency or introduce unwanted substances into drinking water. Multi-stage filtration typically incorporates activated carbon filters, sedimentary filters, and sometimes mineralisation cartridges ensuring optimal source water quality.

Flow control mechanisms regulate water velocity through the electrolysis chamber, ensuring adequate contact time between water and electrode surfaces for effective ionisation whilst maintaining practical flow rates suitable for drinking water dispensing. Flow sensors and microprocessor controls adjust electrolysis parameters dynamically based on actual flow rates.

Mechanism of Action and Water Property Modifications

Alkaline water ionisers fundamentally alter several water characteristics through the electrolysis process. The primary modification involves pH elevation in the cathodic stream, typically achieving pH values between 8.5 and 10.5 depending on source water mineral content and selected ionisation intensity. This alkalinity results from hydroxide ion concentration increases generated through cathodic reduction reactions.

The oxidation-reduction potential (ORP) undergoes significant modification during ionisation. Alkaline water produced at the cathode typically exhibits negative ORP values, sometimes reaching -200 to -800 millivolts, contrasting with typical tap water ORP values ranging from +200 to +400 millivolts. This negative ORP indicates increased electron availability, which proponents suggest may confer antioxidant characteristics, though scientific consensus regarding health implications remains subject to ongoing research and debate.

Mineral concentration in alkaline water increases relative to source water due to cation migration towards the cathode. Beneficial minerals including calcium, magnesium, and potassium concentrate in the alkaline stream, potentially enhancing mineral intake for consumers, whilst the acidic stream accumulates anions and experiences pH reduction.

Dissolved hydrogen gas generated at the cathode may contribute additional properties to alkaline water, with some systems producing measurable dissolved hydrogen concentrations, though typically at lower levels than dedicated hydrogen water generators.

European Union Regulatory Compliance

Alkaline water ionisers marketed within the European Union must satisfy comprehensive regulatory requirements ensuring consumer safety, electromagnetic compatibility, materials safety, and environmental responsibility throughout the product lifecycle.

The Low Voltage Directive (LVD) 2014/35/EU establishes essential safety requirements for electrical equipment operating within specified voltage ranges. Compliance necessitates incorporation of appropriate protective measures including electrical isolation between mains voltage and water-contact components, earth leakage protection, overcurrent protection devices, and insulation systems conforming to harmonised standards such as EN 60335 series governing household and similar electrical appliances.

The Electromagnetic Compatibility (EMC) Directive 2014/30/EU mandates that equipment neither generates excessive electromagnetic interference affecting other devices nor proves susceptible to electromagnetic disturbances from external sources. Compliance verification through testing according to EN 55014 and EN 61000 series standards ensures electromagnetic compatibility in residential and commercial environments.

The Restriction of Hazardous Substances (RoHS) Directive 2011/65/EU restricts concentrations of specific hazardous materials including lead, mercury, cadmium, hexavalent chromium, and certain brominated flame retardants in electrical and electronic equipment. Manufacturers must ensure electrode materials, electronic components, housing materials, and all constituents comply with RoHS limitations.

The REACH Regulation EC 1907/2006 imposes comprehensive requirements regarding chemical substance registration, safety assessment, and supply chain communication. Ion-exchange membranes, electrode coatings, sealing materials, and all chemical substances employed in ioniser construction must comply with REACH provisions.

Materials contacting drinking water must conform to European standards ensuring no harmful substances leach into water at levels exceeding established limits. Compliance with national implementations of the Drinking Water Directive (EU) 2020/2184 requires appropriate material selections, migration testing, and verification that produced alkaline water meets quality criteria for human consumption.

Environmental considerations addressed by the Waste Electrical and Electronic Equipment (WEEE) Directive 2012/19/EU require manufacturers to facilitate recycling and proper disposal, whilst the Ecodesign Directive 2009/125/EC encourages energy efficiency optimisation and environmental impact minimisation during the use phase.
